Produktbeskrivning

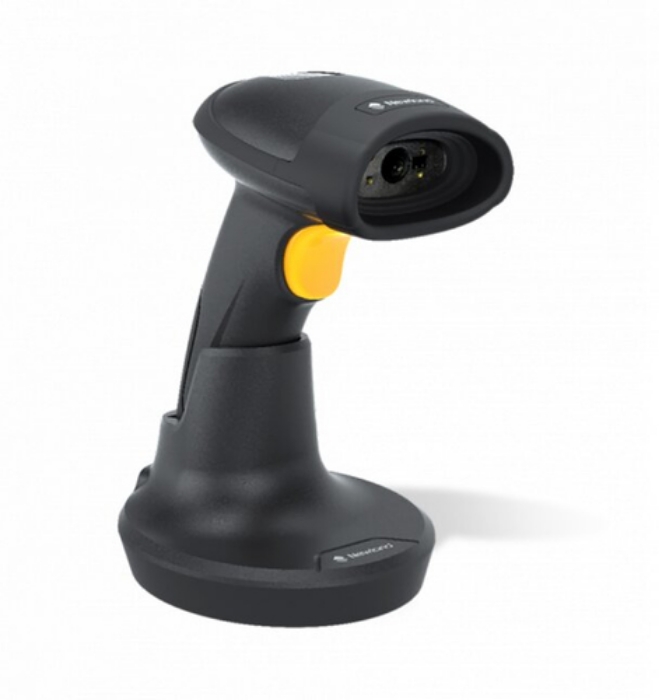

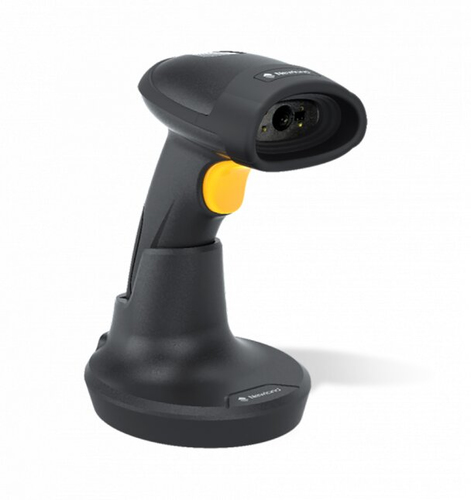

Adopting the latest Bluetooth 5.0 technology, the HR32 Marlin Bluetooth is able to maintain a strong, anti-interference connection to transmit data. The HR32 Marlin Bluetooth is equipped with megapixel technology to read virtually all 1D or 2D barcodes in any condition. From long or truncated 1D codes to larger and more high-density 2D codes.

With a reliable bluetooth connection, this handscanner is ready for any environment.
This versatile wireless scanner fits right at home in tight workspaces and the outer corners of your stock floors. The detachable dongle seamlessly transforms the charging cradle into a communication cradle.

Mega Pixel Scanning Technology
Equipped with a megapixel barcode scanner, the HR32 Marlin BT SD reads virtually all 1D or 2D barcodes in any condition. It has a better reading performance on reading long or truncated 1D codes or larger and more high-density 2D codes.

Perfected for POS
The HR32 Marlin BT SD has a stand design for hands-free scanning, especially ideal for POS applications. Users can process smaller items without having to pick up the scanner. The scanner can then be picked up to use for more oversized items without dealing with cables.

JPOS and OPOS Driver Support
When in HID-POS or Newland CDC mode, JPOS and OPOS drivers are supported via the dongle directly or the dongle, stand + USB cable combination.

Supports the Workload
The 2200mAh battery, combined with the low power consumption of the HR32 Marlin BT SD and lower power Bluetooth 5.0, means a full charge can last over 12 hours. A charge from empty to full takes less than 4 hours.

Fit for the job
With a 1.5m drop and IP42 rating, the HR32 Marlin BT SD can take a tumble from a high countertop or workbench onto hard floors with no problem. The IP42 is a high enough sealing for dirty and damp environments.

Flexible Bluetooth Options
The HR32 Marlin BT SD has 3 Bluetooth options. When the dongle and charging station is connected, the scanner transmits data via the USB cable to the host. The dongle can also be removed and used in a spare USB port, and the Bluetooth on the scanner can be paired with a 3rd party Bluetooth on a host.



Viktiga egenskaper

Newland HR32 Marlin. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 50 m. Product colour: Black, International Protection (IP) code: IP42, Protection features: Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 217 g, Width: 113.5 mm, Depth: 73.3 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	CMOS
Linear (1D) barcodes supported	China Post,Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,GS1-128 (UCC/EAN-128),ISBN,ISSN,Industrial 2 of 5,MSI,Plessey,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code,Code 1,Data Matrix,Micro QR Code,MicroPDF417,PDF417,QR Code
Optical sensor resolution (W x H)	1280 x 800 pixels
Tilt reading angle	-55 - 55 °
Pitch reading angle	-55 - 55 °
Yaw reading angle	0 - 360 °

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	50 m
Bluetooth version	5.0

Product colour	Black
International Protection (IP) code	IP42
Protection features	Drop proof,Dust resistant,Electrostatic Discharge (ESD) protection
LED indicators	Yes
Buzzer	Yes
Flash memory	0.001 GB
Print contrast	25 %
Certification	FCC Part15 Class B, CE EMC Class B

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery type	Built-in battery
Battery capacity	2400 mAh
Battery voltage	5 V
Battery life	12 h
Charging time	4 h

Width	113.5 mm
Depth	73.3 mm
Height	159 mm
Weight	217 g

Charging base	Yes

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Compliance certificates	RoHS
