Produktbeskrivning

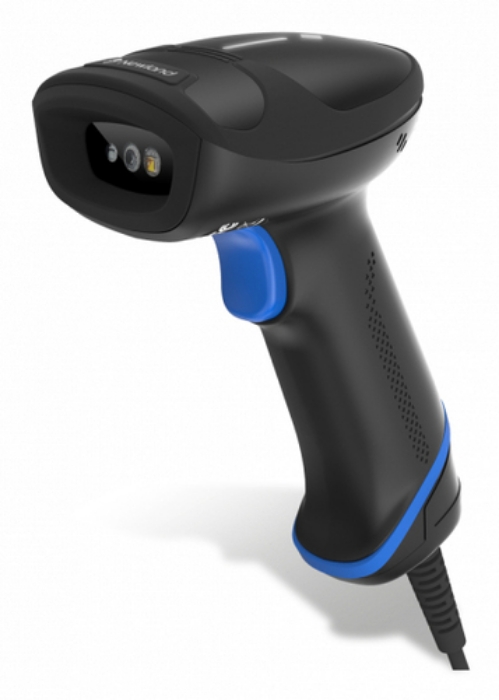

The legacy continues with the latest HR33 Marlin Corded, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best ever handheld 2D barcode reader so far. The HR33 Marlin Corded features a light and ergonomic design, making it the ideal companion for high-intensity scanning.

Performance and Elegance
The HR33 Marlin boasts a stylish design that is not only well-balanced and comfortable to hold but also looks great. It is an example of Newland taking pride in matching performance with beauty.

Adaptable to your needs.
The HR33 Marlin is the first in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin series the best in class.

High Performance
The HR33 Marlin Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads.

Acuscan
Laser aiming with Acuscan is an optional feature that allows you to hone in on the code you want, even if barcodes are printed closely together.

Hands-free Scanning
The HR33 Marlin Corded scanner offers various hands-free scanning stand options. The first option is the intelligent adjustable auto-sense stand, which can be adjusted from an upright position to a flat one, making it suitable for desktop and wall-mounted use. The second option is the gooseneck stand, which provides a flexible design to adjust to your preferred scanning distance and angle.

Be confident with Newland
The HR33 Marlin’s IP52 and 1.5m drop specification are backed up with a trustworthy 5-year warranty. Select the HR33 with confidence, knowing that Newland has created a scanner that’s up for the job no matter the environment.



Viktiga egenskaper

Newland HR33 Marlin. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Print contrast: 15%. Power source type: USB, Power consumption: 281 mA. Weight: 140 g, Width: 95 mm, Depth: 68 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
OCR types supported	China Travel Permit OCR,Chinese ID Card,Passport OCR
Sensor type	CMOS
2D (matrix & stacked) barcodes supported	Aztec Code,Code 1,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Linear (1D) barcodes supported	AIM-128,China Post,Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 Composite,GS1 DataBar,GS1 DataBar Coupon,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI-Plessey,Matrix 2 of 5,Plessey,Standard 2 of 5,UPC-A
Laser guide	Yes
Optical sensor resolution (W x H)	1280 x 800 pixels
Horizontal field of view	48 °
Vertical field of view	30 °
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °

Connectivity technology	Wired
Standard interfaces	RS-232,USB
USB 2.0 ports quantity	1

Product colour	Black
International Protection (IP) code	IP52
LED indicators	Yes
Buzzer	Yes
Print contrast	15 %
Vibration function	Yes
Certification	IEC62471, IEC60825

Power source type	USB
Power consumption	281 mA

Width	95 mm
Depth	68 mm
Height	166 mm
Weight	140 g

Drop resistance	1.5 m
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %

Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
