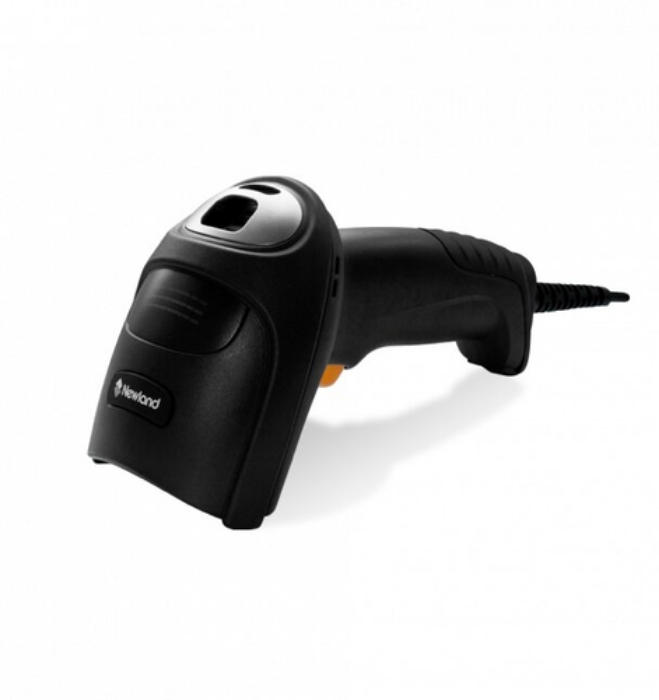

Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.

Scan with impressive accuracy at your POS.
Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.

Developed for scanning at the POS.
Equipped with a megapixel barcode scanner, the HR52 Bonito Corded provides you with some of the snappiest and most accurate scanning on the market. It reads virtually all 1D or 2D barcode in any condition, including DotCode on tobacco products.

Perfected for precise aiming.
Soft, white illumination combined with a clear cross laser aimer provide ideal conditions for point-and-shoot scanning. One press of the trigger is sure to capture the correct barcode, even if surrounded by other barcodes, by using Newland’s Acuscan aiming technology.

Adjusts to your environment.
No matter where the scanner needs to fit into your business, the HR52 Bonito Corded suits the setting. Its stand can be set for hands-free scanning, optimising work at your POS while keeping the device fully charged. In the stockroom or your warehouse, it can be mounted vertically or horizontally for easy access.

Durable design.
The built-in durability of the HR52 Bonito Corded makes the handheld scanner a reliable solution. Everyday drops to the floor or bumps on the counter are no match for its 1.8m drop resistance.

2D CMOS Handheld Reader, Mega Pixel, Retail version, DotCode enabled (Black surface) with 3 meter coiled USB cable. Autosense, smart stand ready.



Viktiga egenskaper

Newland HR52 Bonito. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 3 m. Product colour: Black, International Protection (IP) code: IP54, Protection features: Drop proof, Electrostatic Discharge (ESD) protection. Power source type: USB, Input voltage: 5 V, Power consumption: 81 mA. Weight: 180 g, Width: 77.5 mm, Depth: 95.5 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI,Matrix 2 of 5,Plessey,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,PDF417,QR Code
Sensor type	CMOS
Optical sensor resolution (W x H)	1280 x 800 pixels
Wavelength	650 nm
Tilt reading angle	-55 - 55 °
Pitch reading angle	-55 - 55 °
Yaw reading angle	0 - 360 °

Connectivity technology	Wired
Standard interfaces	USB
Cable length	3 m

Product colour	Black
International Protection (IP) code	IP54
Protection features	Drop proof,Electrostatic Discharge (ESD) protection
Buzzer	Yes
Print contrast	20 %
Certification	FCC Part15 Class B, CE EMC Class B

Power source type	USB
Input voltage	5 V
Power consumption	81 mA

Width	77.5 mm
Depth	95.5 mm
Height	172.5 mm
Weight	180 g

Cables included	USB

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
