Produktbeskrivning

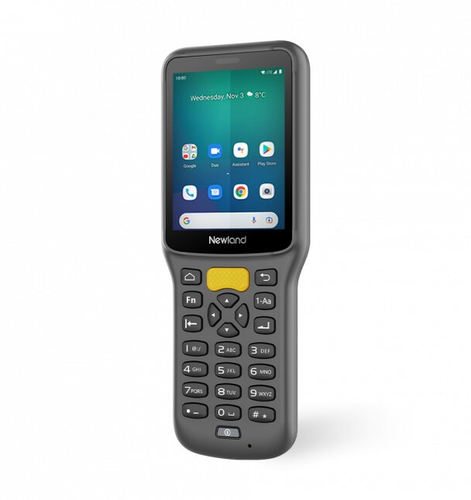

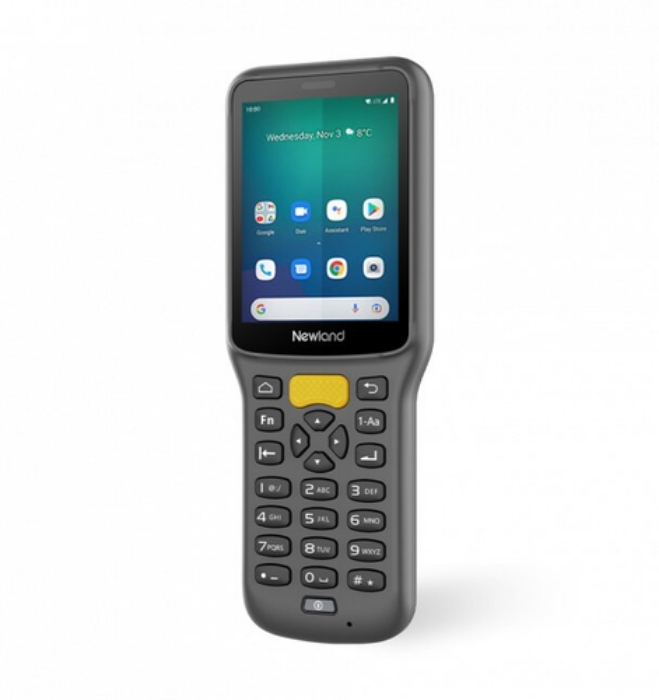

Equipped with Newland’s 6th generation decoder chip, the MT37 Baiji can scan even damaged or poor quality barcodes with ease and speed.
The special pre-installed DCAPP software allows customizing the MT37 Baiji to any solution you might require.

Light and Portable Data Collector
Made for high-demand operations, the MT37 Baiji provides a lightweight & ergonomic design to reduce fatigue during extended work sessions, and a long-lasting battery to get you through the entire shift without re-charging or switching out devices.

Superior Scanning Capabilities.
MT37 Baiji’s integrated 2D scan engine, equipped with Newland's 6th generation decoder chip, supports both 1D and 2D barcodes. The MT37 Baiji is set up to decode even damaged or poor-quality barcodes with ease and speed.

User-focused Ergonomics.
Made for high-demand operations, the MT37 Baiji renders a lightweight & ergonomic design to reduce fatigue during extended work sessions. The numeric keypad with some additional navigation buttons and a capacitive touch screen provides users with all the input choices they need.

Extended Battery Life.
The MT37 Baiji's 3300 mAh battery lasts up to 10 hours on a single charge. This enables you to get through your entire shift without re-charging or switching out devices.

Customized Android OS.
Built on Android 8.1 Go, the MT37 Baiji offers extended data security features, including Android's application protection and admin management tools.

Excellent Setup.
The MT37 Baiji is equipped with a Quad-Core processor, Android 8.1 Go OS, high-performance Dual-Band Wi-Fi, and Bluetooth 5.0 connection. Its rugged housing can withstand 1.2m drops to concrete.

DCAPP Software.
The MT37 Baiji comes with pre-installed and pre-licensed Newland DCAPP by Sysdev. Newland's DCAPP is a ready-to-use app that allows you to collect, transfer, and export data in a very simple way. With DCAPP, you can quickly start to collect data with 5 included pre-established templates of ready-to-be-used apps. It can then be synchronized with your PC or server to effortlessly export the gathered data.



Viktiga egenskaper

Newland MT37 Baiji. Display diagonal: 7.11 cm (2.8"), Display resolution: 320 x 240 pixels, Touch technology: Multi-touch. Internal memory: 8 GB, Flash memory: 8 GB. Processor frequency: 1.8 GHz. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Keyboard layout: Alphanumeric, Barcode reader



Teknisk specifikation

Display diagonal	2.8 "
Display resolution	320 x 240 pixels
Touchscreen	Yes
Touch technology	Multi-touch

Internal memory	8 GB
Flash memory	8 GB
Total storage capacity	8 GB
RAM capacity	1 GB

Processor frequency	1.8 GHz
Number of cores	4

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
Data network	2G,3G,4G,LTE,WCDMA
Near Field Communication (NFC)	Yes

GPS (satellite)	Yes

Speakers	Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Product colour	Black
Barcode reader	Yes
RFID reader	Yes
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,MSI,Matrix 2 of 5,Plessey,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Dot Code A,MaxiCode,Micro QR Code,PDF417,QR Code
Phone function	Yes
Vibrating alert	Yes
Drop proof	Yes
LED indicators	Yes
Keyboard layout	Alphanumeric
Drop proof	120 cm

Operating system installed	Android
Operating system version	8.1

Battery capacity	3300 mAh
Battery voltage	3.8 V

Weight	155 g
Width	158 mm
Depth	59 mm
Height	18.3 mm

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-30 - 60 °C

Cables included	USB Type-C
