Produktbeskrivning

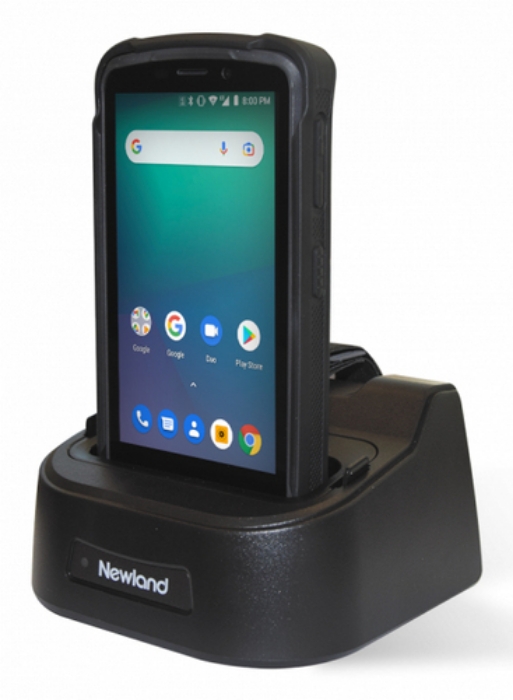

MT90 Orca Pro II
Mobile Computers
Designed and built to go the extra mile, the MT90 Orca Pro II offers the very best of our Orca series. As the flagship series’ Pro label, it sports high-end features, such as Android 11 OS, a 2.0 GHz processor, and Android Enterprise Recommended (AER) status, ensuring top support and management. These features come in addition to everything you know and love from the Orca Series.

Our flagship mobile computer series at its best.
With the MT90 Orca Pro II in your hands, you’ll benefit from exceptional scanning with Newland’s own Megapixel imaging technology. You’ll also enjoy 4G data, voice communication, dual-band WiFi, GPS, and NFC as usual. All this makes the MT90 Orca Pro II your no-compromise enterprise solution.

Full touchscreen mobile computer.
Like the rest of its series, the MT90 Orca Pro II is an Android mobile computer that packs all of the latest hardware into a modern and user-friendly design. It is a light and durable device with a 5" capacitive touch screen. Equipped with a familiar user interface and the exterior of a rugged consumer phone, the MT90 Orca Pro II is easy to set up and use right out of the box.

Android Enterprise Recommended (AER).
The MT90 Orca Pro II carries Google’s AER seal of approval, signaling it keeps pace with performance and security upgrades to its operating system and core functionality. This label, in combination with Newland’s free MDM Ndevor, enables clients to maintain secure visibility and control over their devices regardless of location.

Fast Charging and long operating time.
The MT90 Orca Pro II has fast charging for its standard 3.8V 4500mAh and its extended capacity 6500mAh battery. Both batteries are replaceable, allowing the user to operate across multiple shifts, day by day.

Powerful and accurate barcode scanning.
The MT90 Orca Pro II’s megapixel scanner is built in at the top of the device and can be triggered with a virtual button on the screen, physical buttons on the side of the device, or via the trigger on the handle of the PG90 Pistol grip. Newland’s Acuscan function makes the unit ideal for picking applications.

Business-class durability.
The MT90 Orca Pro II is built to withstand dusty environments and inevitable bumps and drops. It has Gorilla® Glass, a rating of IP65, and has been drop-tested up to 1.5m, ensuring longer and more reliable use.

Accessories that match your operations.
A wide range of accessories for the MT90 Orca Pro II are included in the package, namely: USB cable, battery, rubber boot, and multi-plug adapter. Various pistol grips, including both UHF and long range, holsters, multi-charging cradles, communication (USB) cradle and vehicle cradle kit are also available for the MT90 Orca Series.



Viktiga egenskaper

Newland MT90 Orca Pro II. Display diagonal: 12.7 cm (5"), Display resolution: 1280 x 720 pixels. Internal memory: 2 GB, Flash memory: 16 GB, Compatible memory cards: MicroSD (TransFlash). Processor frequency: 1.5 GHz. Operating system installed: Android 13. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)



Teknisk specifikation

Display diagonal	5 "
Display resolution	1280 x 720 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Internal memory	2 GB
Flash memory	16 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Processor frequency	1.5 GHz
Number of cores	2

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.1
Bluetooth Low Energy (BLE)	Yes
Internal modem	Yes
SIM card type	MiniSIM + MicroSIM
Data network	2G,3G,4G
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Near Field Communication (NFC)	Yes

GPS (satellite)	Yes
Assisted GPS (A-GPS)	Yes
GLONASS	Yes

Built-in camera	Yes
Rear camera resolution (numeric)	8 MP
Auto focus	Yes
Built-in flash	Yes
Sensor type	CMOS

Built-in microphone	Yes
Speakers	Yes

Micro-USB 2.0 ports quantity	1
Headphone connectivity	3.5 mm

Product colour	Black
RFID reader	Yes
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Code 39,Data Matrix,PDF417,QR Code
Vibrating alert	Yes
Drop proof	Yes
Drop proof	1.5 cm
LED indicators	Yes
International Protection (IP) code	IP65
Certification	CE RED, FCCID, RoHS, IEC6247

Operating system installed	Android 13
Bundled software	Ndevor, SOTI, Airwatch

Battery capacity	4500 mAh
Battery voltage	3.8 V
Battery life (max)	10 h
Battery recharge time (off)	5 h
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter output voltage	5 V
AC adapter output current	2 A

Weight	265 g
Width	78.5 mm
Depth	155 mm
Height	20.5 mm

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 55 °C
Storage temperature (T-T)	-40 - 70 °C

Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Keypad number of keys	10
