Produktbeskrivning

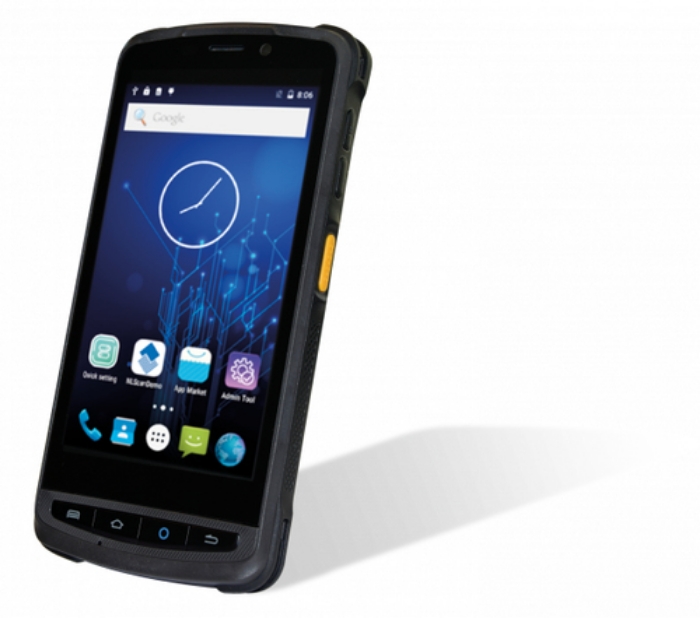

The MT90 Orca Mobile Computer is designed with an optimal form factor for a full touchscreen mobile computer with barcode scanner. Its consumer-style design and Android operating system makes the experience similar to picking up a personal mobile phone. This makes for an intuitive use and a limited need for staff training.

From the moment you take it out of the box, the MT90 Orca is easy to use
The device is rugged and designed to withstand everyday drops and bumps, but no compromises were made in its ergonomics. Equipped with the standard rubber boot, it has passed drop tests of up to 1.5m. Plus at only 260g, it’s easy to carry around all day. A hand strap, wrist lanyard or optional holster help you to keep it by your side – ready to use – during all other activities.

Full touchscreen mobile computer.
The MT90 Orca II is an Android mobile computer that packs all of the latest hardware in a modern and user-friendly design. It is a light and durable device with a 5” capacitive touch screen. Equipped with a familiar user interface and the exterior of a consumer phone, the MT90 Orca II is easy to set up and use right out of the box.

Megapixel barcode scanning.
Developed for quick and efficient barcode scanning, the MT90 Orca II ensures maximum productivity. Its megapixel scan engine is built in at the top of the device and can be triggered with a virtual button on the screen or a physical button on the side of the device for easy point-and-shoot scanning.

Reliable all day use with a replaceable battery.
The MT90 Orca II has a 3.8V 4500 mAh battery that allows you to use the device all day without problem. Additionally, the battery is replaceable, allowing you to use a spare battery if needed.

Business-class durability.
The MT90 Orca II is built to withstand dusty environments and inevitable bumps and drops. It has a rating of IP65 and has been drop tested up to 1.5m, or 1.8m with a rubber boot, ensuring longer and more reliable use.

GMS (optional).
The MT90 Orca II has models with and without Google Mobile Services (GMS). GMS offers integrated Google applications such as Gmail, Google Maps and Google Play Store.

Accessories that match your operations.
A wide range of accessories for the MT90 Orca II are included in the package, namely: single slot charging & communication (USB) cradle, rubber boot, hand strap and wrist lanyard. Pistol grip, UHF pistol grip, long-range pistol grip and holsters are optional.



Viktiga egenskaper

Newland NLS-MT9052-GL-2WE. Display diagonal: 12.7 cm (5"), Display resolution: 1280 x 720 pixels, Touch technology: Multi-touch. Internal memory: 2 GB, Flash memory: 16 GB, Compatible memory cards: MicroSD (TransFlash). Processor frequency: 1.5 GHz. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n). Barcode reader



Teknisk specifikation

Display diagonal	5 "
Display resolution	1280 x 720 pixels
Display	LED
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive

Internal memory	2 GB
Flash memory	16 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Processor frequency	1.5 GHz
Number of cores	8
Built-in processor	Yes

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Bluetooth	Yes
Bluetooth version	4.2
SIM card type	MiniSIM + MicroSIM
Data network	2G,3G,4G,GSM,LTE,WCDMA
GSM bands supported	850,900,1800,1900 MHz
Near Field Communication (NFC)	Yes
Security algorithms	WPA2-Enterprise

GPS (satellite)	Yes
Assisted GPS (A-GPS)	Yes
GLONASS	Yes

Built-in camera	Yes
Rear camera resolution (numeric)	8 MP
Built-in flash	Yes
Sensor type	CMOS

Headphone outputs	1
Headphone connectivity	3.5 mm

Product colour	Black
RFID reader	Yes
Barcode reader	Yes
Scanner type	1D/2D
Phone function	Yes
Vibrating alert	Yes
USB On-The-Go support	Yes
Drop proof	Yes
LED indicators	Yes
Drop proof	1.5 cm
International Protection (IP) code	IP65

Operating system installed	Android
Operating system version	8.1

Battery capacity	4500 mAh
Battery voltage	3.8 V
Battery life (max)	10 h
Battery recharge time (on)	5 h
AC adapter frequency	50 - 60 Hz
AC adapter output voltage	110 - 240 V

Weight	265 g
Width	78.5 mm
Depth	155 mm
Height	20.5 mm

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 55 °C
Storage temperature (T-T)	-40 - 70 °C

Cables included	AC,Micro-USB
