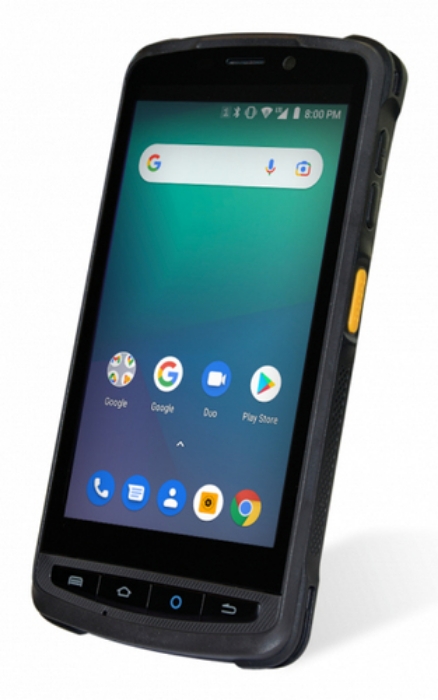

MT90 Orca III
Mobile Computers
The MT90 Orca III Mobile Computer is designed with an optimal form factor for a full touchscreen mobile computer with barcode scanner. Its consumer-style design and Android operating system makes the experience similar to picking up a personal mobile phone. This makes for an intuitive use and a limited need for staff training.

From the moment you take it out of the box, the MT90 Orca III is easy to use.
The device is rugged and designed to withstand everyday drops and bumps, but no compromises were made in its ergonomics. Equipped with the standard rubber boot, it has passed drop tests of up to 1.5m. Plus at only 270g, it’s easy to carry around all day. A hand strap, wrist lanyard or optional holster help you to keep it by your side – ready to use – during all other activities.

Full touchscreen mobile computer.
The MT90 Orca III is an Android mobile computer that packs all of the latest hardware in a modern and user-friendly design. It is a light and durable device with a 5” capacitive touch screen. Equipped with a familiar user interface and the exterior of a consumer phone, the MT90 Orca III is easy to set up and use right out of the box.

Megapixel barcode scanning.
Developed for quick and efficient barcode scanning, the MT90 Orca III ensures maximum productivity. Its megapixel scan engine is built in at the top of the device and can be triggered with a virtual button on the screen or a physical button on the side of the device for easy point-and-shoot scanning.

Reliable all day use with a replaceable battery.
The MT90 Orca III has a 3.8V 4500 mAh battery that allows you to use the device all day without problem. Additionally, the battery is replaceable, allowing you to use a spare battery if needed.

Business-class durability.
The MT90 Orca III is built to withstand dusty environments and inevitable bumps and drops. It has a rating of IP65 and has been drop tested up to 1.5m, or 1.8m with a rubber boot, ensuring longer and more reliable use.

GMS.
The MT90 Orca III offers Google Mobile Services (GMS) with integrated Google applications such as Gmail, Google Maps and Google Play Store.

Accessories that match your operations.
A wide range of accessories for the MT90 Orca III are included in the package, namely: single slot charging & communication (USB) cradle, rubber boot, hand strap and wrist lanyard. Pistol grip, UHF pistol grip, long-range pistol grip and holsters are optional.



Viktiga egenskaper

Newland MT90 Orca III. Display diagonal: 12.7 cm (5"), Display resolution: 1280 x 720 pixels. Internal memory: 4 GB, Flash memory: 64 GB, Compatible memory cards: MicroSD (TransFlash). Processor frequency: 2 GHz. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Barcode reader



Teknisk specifikation

Display diagonal	5 "
Display resolution	1280 x 720 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Internal memory	4 GB
Flash memory	64 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Processor frequency	2 GHz
Number of cores	8

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
Internal modem	Yes
Data network	2G,3G,4G
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Near Field Communication (NFC)	Yes

GPS (satellite)	Yes
Assisted GPS (A-GPS)	Yes
GLONASS	Yes

Built-in camera	Yes
Rear camera resolution (numeric)	8 MP
Auto focus	Yes
Built-in flash	Yes
Sensor type	CMOS

Built-in microphone	Yes
Speakers	Yes

Headphone connectivity	3.5 mm

Product colour	Black
Barcode reader	Yes
RFID reader	Yes
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Code 39,Data Matrix,PDF417,QR Code
Vibrating alert	Yes
Drop proof	Yes
LED indicators	Yes
Drop proof	1.5 cm
International Protection (IP) code	IP65
Certification	CE RED, FCCID, RoHS, IEC6247

Operating system installed	Android
Bundled software	Ndevor, SOTI, Airwatch

Battery capacity	4500 mAh
Battery voltage	3.8 V
Battery life (max)	10 h
Battery recharge time (off)	5 h
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter output voltage	5 V
AC adapter output current	2 A

Weight	270 g
Width	78 mm
Depth	155 mm
Height	20 mm

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 55 °C
Storage temperature (T-T)	-40 - 70 °C

Electrostatic Discharge (ESD) protection (contact)	8 kV
Electrostatic Discharge (ESD) protection (air)	15 kV
Keypad number of keys	10
