Produktbeskrivning

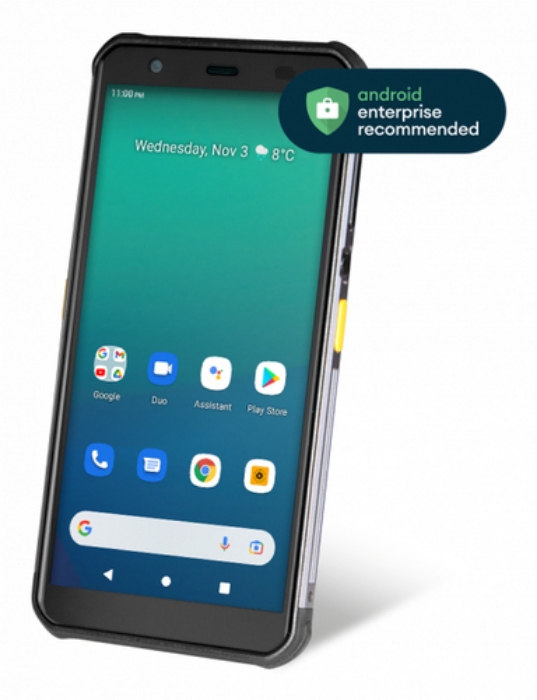

NFT10 Pilot Pro
Mobile Computers
Designed to bridge the gap between a rugged PDA and a sleek & stylish smartphone, the NFT10 Pilot Pro offers businesses a high quality Android mobile computer. At 5.7”, it’s one of the largest durable touchscreens on the market. The NFT10 Pilot Pro is also available in a white healthcare version.Work smarter, wherever you are. You're the pilot.

Work smarter, wherever you are. You're the pilot.
The NFT10 Pilot Pro uses an ultra-slim megapixel barcode scanner with left and right scan solutions for comfortable data capture, all housed in a design that matches the look and feel of high-end modern consumer phones. With Newland’s standard warranty, extended warranty options and Ndevor MDM solutions, the NFT10 Pilot Pro has all the style, functionality and support needed for any enterprise.

Comprehensive data capture.
The NFT10 Pilot Pro can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode scanning, NFC RFID reading, fingerprint recognition and GPS/Beidou/GLONASS.

Versatile connectivity.
With dual band 802.11 a/b/g/n/ac WiFi and 4G/3G/2G support, the NFT10 Pilot Pro keeps you connected. Further optimizing this, the dual SIM option allows you to use the most suitable provider no matter where you are. It’s a match for any leading consumer-brand mobile phone experience.

Powerful performance.
The Android 11 operating system helps you get more from your mobile computer. It’s intuitive, fast and tailored to you and your choice of software, applications and operational use. A 2.0GHz octa-core processor keeps you running even smoother.

Long Lasting Battery.
The NFT10 Pilot Pro is equipped with a 4800mAh battery. Supplemented by a low-power design, the usage time is significant. The device is so power-efficient that you won’t need to change the battery to operate well beyond a standard shift. To top it off, it supports fast-charging via its Type-C port.

Android Enterprise Recommended.
The Pilot Pro is the first Newland unit to be Android Enterprise recommended. Additionally, GMS services are included.

Rugged durability.
The NFT10 Pilot Pro's rugged housing is sealed to IP67 standards for protection against dust and water. It was built to reliably withstand 1.5m drops to concrete.

Biometric Security.
The NFT10 Pilot Pro has fingerprint biometrics for extra security and a faster login. Positioned on the back of the device, the device can be comfortably unlocked with one hand without having the press the front of the screen.



Viktiga egenskaper

Newland NFT10 Pilot Pro. Display diagonal: 14.5 cm (5.7"), Display resolution: 1440 x 720 pixels. Internal memory: 4 GB, Flash memory: 64 GB, Compatible memory cards: MicroSD (TransFlash). Processor frequency: 2 GHz. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Barcode reader



Teknisk specifikation

Display diagonal	5.7 "
Display resolution	1440 x 720 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Internal memory	4 GB
Flash memory	64 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Processor frequency	2 GHz
Number of cores	8

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
SIM card type	NanoSIM
Data network	2G,3G,4G
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Near Field Communication (NFC)	Yes

GPS (satellite)	Yes
Assisted GPS (A-GPS)	Yes
GLONASS	Yes

Built-in camera	Yes
Rear camera resolution (numeric)	13 MP
Front camera	Yes
Front camera resolution (numeric)	2 MP
Auto focus	Yes
Built-in flash	Yes
Sensor type	CMOS

Built-in microphone	Yes
Speakers	Yes

Headphone connectivity	Bluetooth / USB-C

Product colour	Black
RFID reader	Yes
Barcode reader	Yes
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Code 39,Data Matrix,PDF417,QR Code
Vibrating alert	Yes
Drop proof	Yes
International Protection (IP) code	IP67
LED indicators	Yes
Drop proof	1.5 cm
Certification	CE RED, FCCID, RoHS, IEC6247

Operating system installed	Android
Operating system version	11
Bundled software	Ndevor, SOTI, Airwatch

Battery capacity	4800 mAh
Battery voltage	3.8 V
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter output voltage	5 V
AC adapter output current	2 A

Weight	231 g
Width	76.3 mm
Depth	157 mm
Height	12.6 mm

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 55 °C
Storage temperature (T-T)	-40 - 70 °C

Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Keypad number of keys	10
