Produktbeskrivning

Designed for healthcare applications, the NVF260 is perfect for tracking surgical instruments. The NVF260 provides excellent performance in reading DPM barcodes with a new generation of industrial decoding algorithms. Its' blue diffuse illumination helps to avoid reflection from metal surfaces.

A Medical Grade Device
With its advanced illumination system and ability to scan DPM barcodes, the NVF260 is perfect for healthcare applications. The special medical-grade coating can withstand sterilization with 100% alcohol solutions without any damage to the surface.

DPM Decoding.
With a new generation of industrial decoding, the NVF260 is excellent at reading DPM barcodes even on curved surfaces.

Advanced Illumination.
The NVF260's blue illumination ring helps to reduce bottlenecks in the scanning process by avoiding the reflection from materials with metal surfaces.

Impressive Image Sensor.
With a 1280x800 megapixel imager, the NVF260 can decode up to 3-millimetre barcodes.

Industrial Design.
Built with an IP64 housing, the NVF260 easily resists water and dust. The medical-grade housing is also able to be sterilized without alcohol damage.

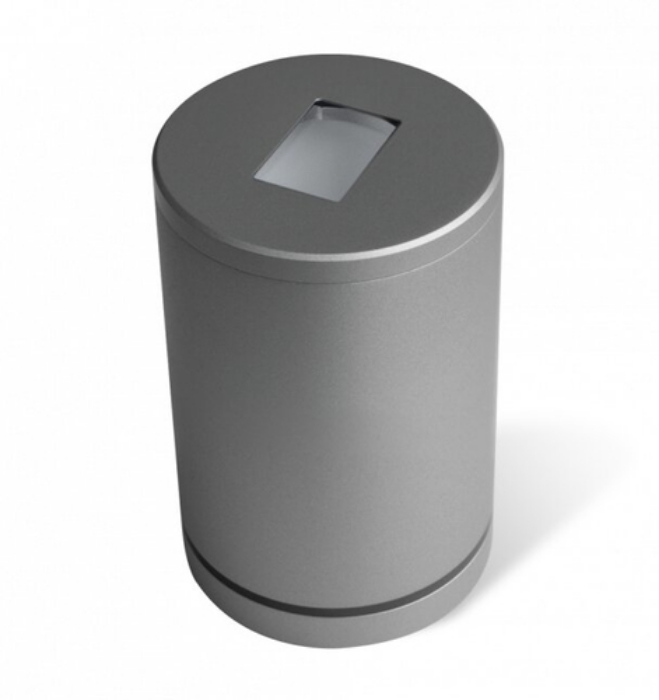

NFV260 2D CMOS Mega Pixel Medical scanner, DPM and HD scanner with direct USB cable



Viktiga egenskaper

Newland NVF260-20. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Grey, International Protection (IP) code: IP64, Protection features: Drop proof, Electrostatic Discharge (ESD) protection. Power source type: USB, Input voltage: 5 V, Power consumption: 230 mA. Weight: 347 g, Width: 65 mm, Depth: 65 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI,Matrix 2 of 5,Plessey,UPC-A,UPC-E
Sensor type	CMOS
2D (matrix & stacked) barcodes supported	Data Matrix,QR Code
Optical sensor resolution (W x H)	1280 x 800 pixels
Tilt reading angle	-40 - 40 °
Pitch reading angle	-40 - 40 °
Yaw reading angle	0 - 360 °

Connectivity technology	Wired
Standard interfaces	USB

Product colour	Grey
International Protection (IP) code	IP64
Protection features	Drop proof,Electrostatic Discharge (ESD) protection
Buzzer	Yes
Certification	FCC Part15 Class B, CE EMC Class B

Power source type	USB
Input voltage	5 V
Power consumption	230 mA

Width	65 mm
Depth	65 mm
Height	100 mm
Weight	347 g

Cables included	USB

Storage temperature (T-T)	20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
