Produktbeskrivning

Intel Data Direct I/O technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel server adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.



Egenskaper

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (virtual machine monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance.

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet.



Teknisk specifikation

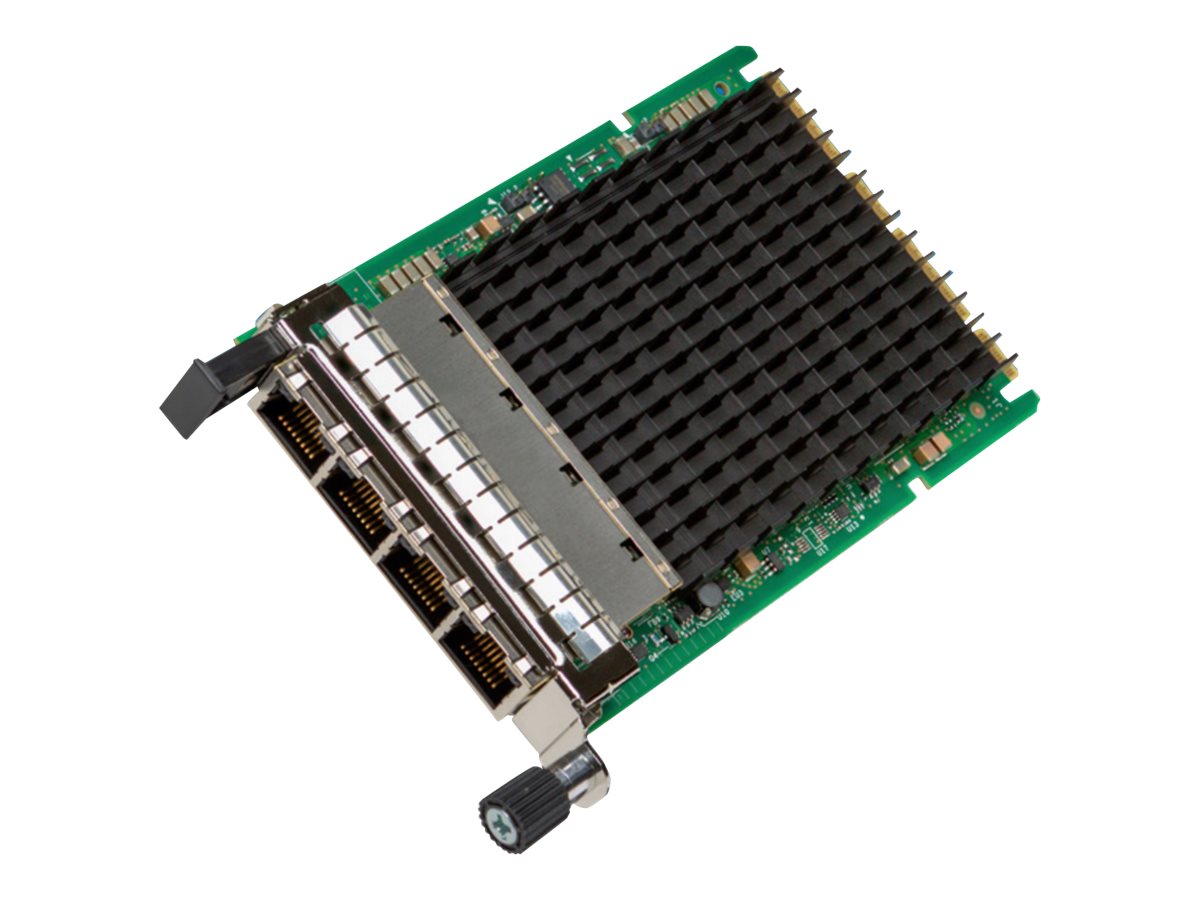

Typ av enhet	Nätverksadapter
Formfaktor	Instickskort
Gränssnittstyp (buss)	PCI Express 3.0 x8
Version av PCI-specifikation	PCIe 3.0

Portar	100M/1G/2.5G/5G/10 Gigabit Ethernet x 4
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Dataöverföringshastighet	10 Gbps
Nätverks/transportprotokoll	iSCSI, NFS
Statusindikatorer	Länk/akvititet
Funktioner	Stöd för MPLS, VLAN-stöd, fast programvara kan uppdateras, VMDq, MSI-X, VT-c, DDIO Technology, VXLAN, NVGRE, FPP, intelligent avlastning, EEE, NFV, VMLB, GENEVE-support, DDP
Standarder som följs	IEEE 802.1as, IEEE 802.3az

Gränssnitt	4 x 1/2.5/5/10GBase-T - RJ-45

Standarder som följs	VCCI, BSMI, FCC, KCC, cULus, RCM, RoHS 2 (2011/65/EU), IEEE 1588, CAN/CSA C22.2, EN 62368-1:2014, UL 62368-1
Förpackningstyp	Detaljhandel

Bredd	11.5 cm
Djup	7.6 cm

Service och support	Begränsad garanti - livstid
