Produktbeskrivning

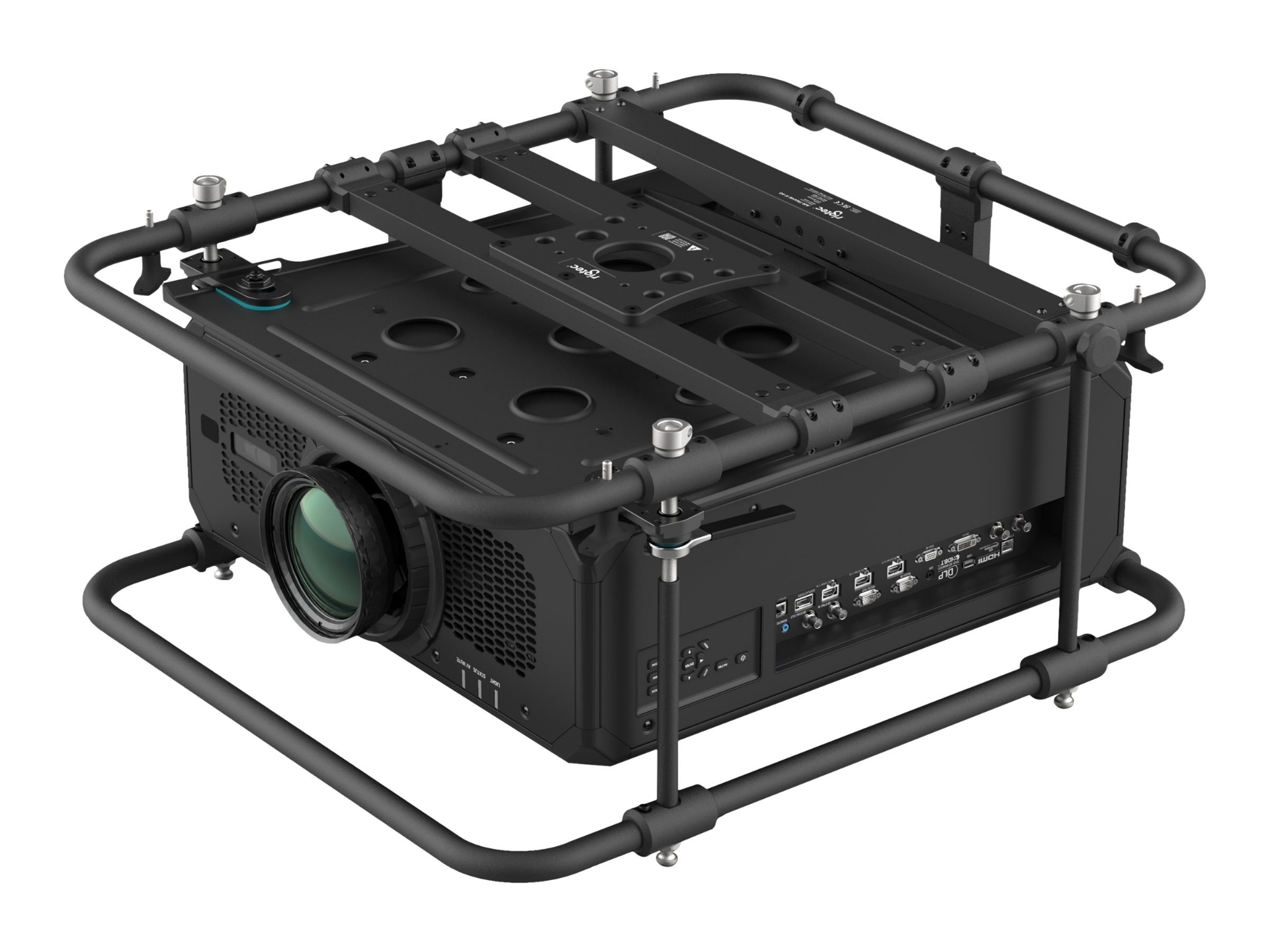

The high brightness ZU1900 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. Part of Optoma's Ultra Bright Series, this projector offers incredibly high brightness of 19,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations.
As part of the Optoma DuraCore laser line up, the Ultra Bright Series high-performance projectors feature 4K HDR compatibility, pure engine video processing and color matching to produce visually striking, lifelike images with exceptional detail and high color accuracy.
Strong reliability is at the core of the Ultra Bright Series projectors, with 24/7 operation capabilities, long hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122 degrees Fahrenheit / 50 degrees Celsius. With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and failsafe redundancy mode for instant source switching, the Ultra Bright Series projectors offer a solution for intricate installations, including multi-projector and dome projection applications.
Egenskaper
Long lifetime is achieved using Optoma's DuraCore technologyImplementing advanced laser diode cooling techniques and an innovative dust resistant design.
Redundant input with fast switchingThe unique signal input detection function provides instant source switching in the event of the failure of the signal source device. This feature ensures an image never fails to display in mission critical installations such as control rooms, live events or other similar scenarios.
Passive 3D compatibilityPassive 3D is available on single chip DLP laser Phosphor projectors. Thanks to the high efficiency light output, these models enable effective 3D solutions for operators to reduce total cost of ownership
Integrated warping and edge blending processorIntegrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost and complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
HDR compatibleCapable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It's like looking through a window.
HDBaseTUncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Metal chassis with modular designModular metal chassis panels and quick release screws make routine maintenance easier than ever.
Amazing colorOptoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. Optoma have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
Color management systemDisplay accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.
Brightness matchingA valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine-tuned to give the same brightness levels; important, especially when side by side.
Constant powerAllows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.
Constant brightnessAdvanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for fine tune installations
True AV muteTrue AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Extreme black featureExtreme black enables the laser diodes to completely turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.
Full lens shiftSimplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
Picture by picture or picture-in-pictureSignals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources - perfect for video-conferencing and other collaborative applications.
360° projectionImages can be projected over a 360° range along the projector's horizontal axis.
Portrait projectionIdeal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Wide temperature operating rangeSuitable for various operating environments. Robust and efficient cooling design allow the projector the ability to withstand a wide ambient operating temperature range.
IP5X dust resistant optical engineIndependently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Full 3DOptoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Control and monitor the projector remotelyFeaturing a wide range of options you can control and monitor the projector remotely.
PJLink protocolPJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
TelnetThis model is able to receive commands via Telnet allowing for easy installation with Telnet compatible control systems.
Teknisk specifikation
Allmänt
Typ av enhet | DLP-projektor |
3D-kapabel | Ja |
Nätverk | Ethernet |
Projektor
Ljusstyrka | 19000 lumen |
Kontrastförhållande | 2000000:1 (dynamisk) |
Upplösning | WUXGA - WUXGA (1920 x 1200) |
Ursprungligt visningsformat | 16:10 |
Typ av lampa | Laser |
Lamplivslängd | Upp till 30000 timme/timmar |
OSD-språk | Ungerska, engelska, tyska, franska, italienska, norska, portugisiska, Polish, spanska, holländska, japanska |
Egenskaper | Stöd för visningsformatet 16:9, PJlink, Crestron RoomView, stöd för bildförhållande 4:3, 360 graders projektion, 24/7-användning |
Videoingång
Videogränssnitt | VGA, HDMI, DisplayPort, DVI, 3G-SDI, HDBaseT |
Bildöverföringsprotokoll för LAN och trådlöst | Kabelanslutet LAN |
Expansion/Anslutning
Gränssnitt | 1 x HDMI-ingång - 19-stifts HDMI typ A 1 x HDMI-utgång - 19-stifts HDMI typ A 1 x HDBaseT - RJ-45 1 x 3G-SDI-inmatning - BNC 1 x USB - 4-stifts USB typ A 1 x VGA-ingång - 15 pin HD D-Sub (HD-15) 1 x seriell RS-232 - 9 pin D-Sub (DB-9) (hantering) 1 x 3G-SDI-utmatning - BNC 1 x 3D-synk in 1 x 3D-synkroniserad utmatning 1 x fjärrkontrollutgång 1 x nätverk - RJ-45 1 x fjärrkontrollingång 1 x DVI-digital |
Dimensioner och vikt
Bredd | 65 cm |
Djup | 71 cm |
Höjd | 25 cm |
Vikt | 50 kg |
Mått och vikt (brutto)
Emballagets vikt | 62.5 kg |
Miljöparametrar
Luftfuktighet vid drift | 10 - 85 % (icke-kondenserande) |
Ljudnivå | 38 dB |
Ljudemission (ekonomiläge) | 36 dB |
