Produktbeskrivning

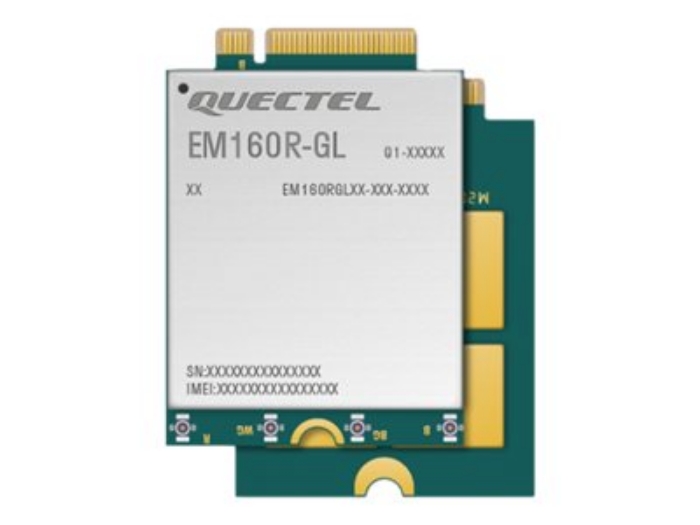

Quectel EM160R-GL is an LTE-A Cat 16 module in an M.2 form factor which is designed to meet the 3GPP Release 14 specification. It supports maximum downlink rates of 1 Gbps and uplink rates of 150 Mbps.
EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
Egenskaper
● Supports DFOTA
● Supports DTMF
● Supports MIMO
● USB 2.0 high-speed interface
● Multi-constellation GNSS receiver
Teknisk specifikation
Allmänt
| Typ av enhet | Trådlöst mobilmodem |
|---|
| Formfaktor | Intern |
|---|
Modem
| Buss | M.2 Card |
|---|
| Anslutningsteknik | Trådlös |
|---|
| Max överföringshastighet | 1 Gbps |
|---|
| Mobiltelefonband | W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8 |
|---|
| Cellulärt protokoll | UMTS, WCDMA, HSUPA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE |
|---|
Diverse
| Standarder som följs | WHQL, CCC, FCC, PTCRB, GCF |
|---|
Mått och vikt
| Bredd | 4.2 cm |
|---|
| Djup | 3 cm |
|---|
| Höjd | 0.23 cm |
|---|
| Vikt | 6.8 g |
|---|
Miljöparametrar
| Min temperatur vid drift | -40 °C |
|---|
| Max temperatur vid drift | 85 °C |
|---|
Kompatibilitetsinformation
| Designat för | (WWAN-ready):
Lenovo ThinkPad P14s Gen 2 20VX, 20VY
Lenovo ThinkPad P15 Gen 2 20YQ, 20YR
Lenovo ThinkPad P15s Gen 2 20W6, 20W7
Lenovo ThinkPad T14 Gen 2 20W0, 20W1
Lenovo ThinkPad T15 Gen 2 20W4, 20W5 |
|---|
