Produktbeskrivning

Expand commercial space with compact display

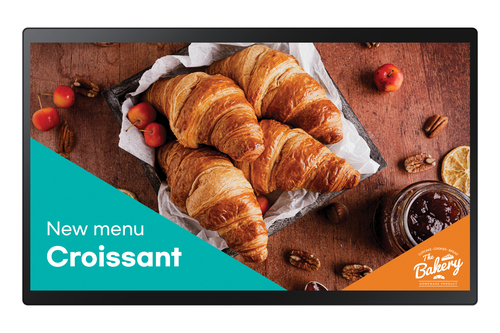

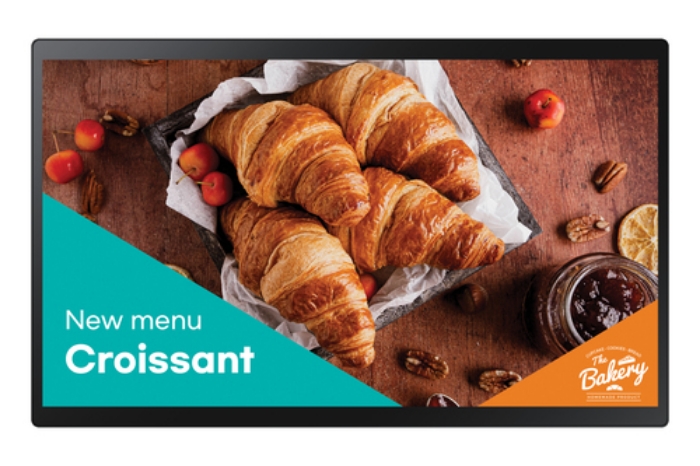

Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Fast, effective touch capabilities

10 point multi-touch
The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.

Connect with convenience

Home UI
QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Convenient, clean display control

Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

IP5X / EMC Class B
QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Change the way to manage your display

Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.



Viktiga egenskaper

Samsung QB24C-T. Product design: Digital signage flat panel. Display diagonal: 61 cm (24"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 7.0. Product colour: Black



Teknisk specifikation

Display diagonal	24 "
Display technology	LED
Panel type	ADS
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Capacitive
Multi-touch	Yes
Response time	14 ms
Contrast ratio (typical)	1000:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Pixel pitch	0.2745 x 0.2745 mm
Horizontal scan range	56 - 84.5 kHz
Vertical scan range	48 - 75 Hz
Haze rate	25 %
RGB colour space	NTSC
Colour gamut	72 %

HDMI ports quantity	1
HDMI version	1.4
HDMI input ports quantity	1
DVI port	No
DisplayPorts quantity	0
USB port	Yes
USB ports quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
RS-232 interface	Yes
Infrared data port	Yes
Remote (IR) input	1

Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100 mm

Purpose	Universal
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2

Power consumption (typical)	38.5 W
Power consumption (sleep)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Computer system	Yes
Computer system type	System on Chip (SoC)
Built-in processor	Yes
Operating system installed	Tizen 7.0

Display width	547.9 mm
Display depth	34.6 mm
Display height	334.4 mm
Display weight	4000 g

Package width	620 mm
Package depth	122 mm
Package height	419 mm
Package volume	5200 cm³

Cables included	Power

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %

Compliance certificates	CE,China Compulsory Certification (CCC),Electromagnetic Compatibility (EMC),Federal Communications Commission (FCC),KCC,RoHS,VCCI
Sustainability certificates	EPEAT Bronze
Sustainability compliance	Yes
Audio out (mini jack)	1

Flash memory	8000 MB
Bluetooth	Yes
RS-232 input ports	1
RJ-45 input ports	1
