Viktiga egenskaper

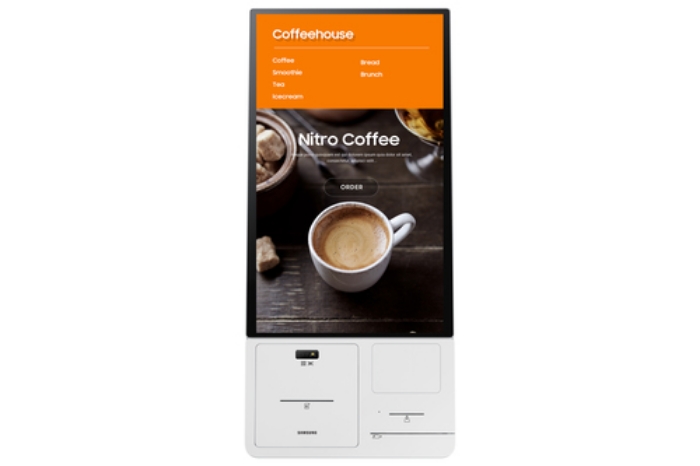

Samsung KM24C-P. Display diagonal: 61 cm (24"). AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (typical): 25 W. Panel mounting interface: 200 x 200 mm. Print technology: Thermal transfer, Print speed: 250 mm/sec, Maximum printing width: 8.3 cm. Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 128, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, Interleaved 2 of 5,...



Teknisk specifikation

Display diagonal	24 "
Touchscreen	Yes

Ethernet LAN	Yes
Bluetooth	No
Wi-Fi	No

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
RS-232 ports	3

AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	25 W

Storage temperature (T-T)	10 - 80 °C
Operating temperature (T-T)	0 - 40 °C

VESA mounting	Yes
Panel mounting interface	200 x 200 mm

Print technology	Thermal transfer
Print speed	250 mm/sec
Maximum printing width	83 mm
Printing media thickness	120 µm
Maximum roll diameter	80 mm
Built-in barcodes	CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,EAN13,EAN8,GS1 DataBar,Interleaved 2/5,QR Code,UPC-A,UPC-C
Autocutter	Yes

Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar,Code 128,Code 39 (ASCII),Code 93,EAN-13,EAN-8,GS1 DataBar,Interleaved 2 of 5,UPC-A,UPC-E

Width	334.4 mm
Depth	236.5 mm
Height	389.6 mm
Weight	7400 g

Package width	428 mm
Package depth	316 mm
Package height	471 mm
Package weight	9100 g

Barcode reader	Yes
