Viktiga egenskaper

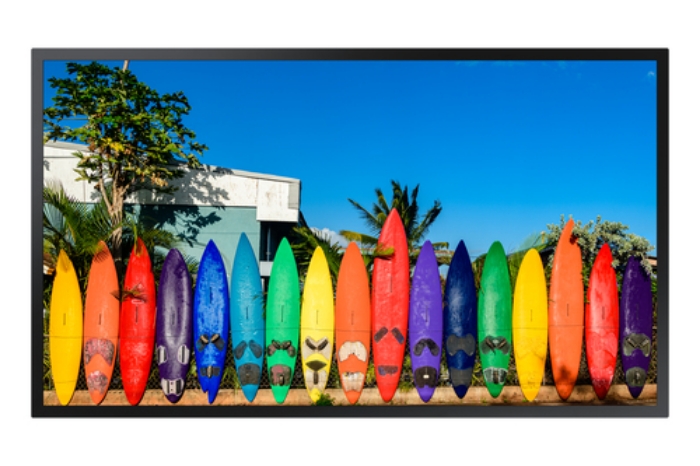

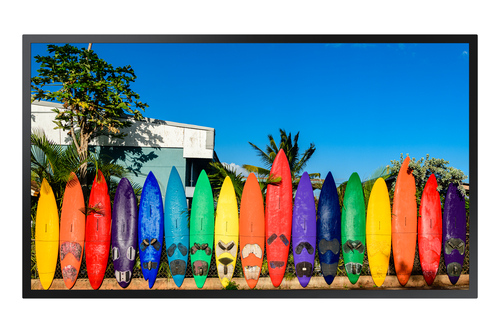

Samsung OM46B. Product design: Digital signage flat panel. Display diagonal: 116.8 cm (46"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 4000 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 5.0. Product colour: Black



Teknisk specifikation

Display diagonal	46 "
Display technology	LCD
Panel type	VA
Display resolution	1920 x 1080 pixels
Display brightness	4000 cd/m²
HD type	Full HD
Touchscreen	No
Native aspect ratio	16:9
Response time	6 ms
Contrast ratio (typical)	6000:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Pixel pitch	0.53 x 0.53 mm
Colour saturation	72 %
Surface hardness	0
Vertical scan range	24 - 75 Hz
Horizontal scan range	15 - 135 kHz
RGB colour space	NTSC

HDMI ports quantity	2
HDMI version	2.0
HDMI input ports quantity	2
DVI port	No
DisplayPorts quantity	1
DisplayPorts in	1
USB port	Yes
USB ports quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	Yes
Composite video out	1
RS-232 interface	Yes
RS-232C	Yes
Infrared data port	Yes

Product design	Digital signage flat panel
Product colour	Black
VESA mounting	Yes
Panel mounting interface	400 x 400 mm
Bezel width (bottom)	19.9 mm
Bezel width (side)	19.9 mm
Bezel width (top)	19.9 mm

TV tuner integrated	No
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
International Protection (IP) code	IP5X

Power consumption (typical)	350 W
Power consumption (sleep)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Internal storage capacity	8 GB
Operating system installed	Tizen 5.0

Display width	1062 mm
Display depth	54.5 mm
Display height	616.6 mm
Display weight	18200 g

Package width	1189 mm
Package depth	158 mm
Package height	757 mm
Package weight	23000 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %

Audio in (mini jack)	No

Bluetooth	No
Audio output	Stereo Mini Jack
Video out	Yes
