Viktiga egenskaper

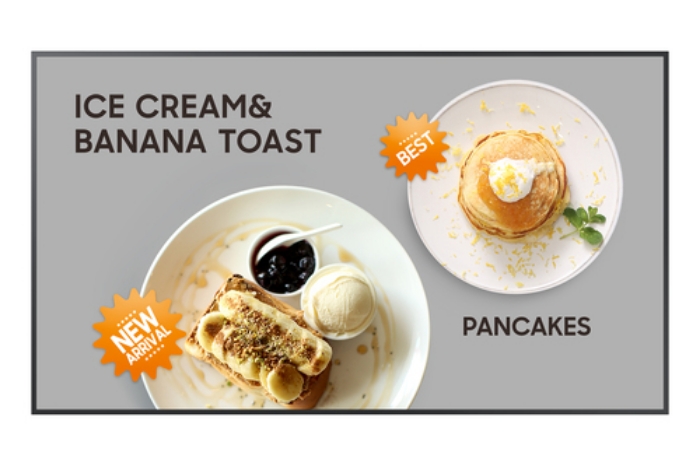

Samsung QM32C. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen. Product colour: Black



Teknisk specifikation

Display diagonal	32 "
Display technology	LCD
Panel type	IPS
LED backlight	Yes
Display resolution	1920 x 1080 pixels
Display brightness	400 cd/m²
HD type	Full HD
Touchscreen	No
Response time	8 ms
Contrast ratio (typical)	1200:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Pixel pitch	0.36375 x 0.36375 mm
Pixel frequency (max)	148.5 MHz
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
Haze rate	1 %
RGB colour space	NTSC

HDMI ports quantity	3
HDMI version	1.4
HDMI input ports quantity	3
DVI port	No
DisplayPorts quantity	0
USB port	Yes
USB ports quantity	2
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
RS-232 interface	Yes
Infrared data port	Yes
Remote (IR) input	1

Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Bezel width (bottom)	11.5 mm
Bezel width (side)	11.5 mm
Bezel width (top)	11.5 mm
Bezel colour	Charcoal Black
Mounting type	Wall

Operating hours (hours/days)	24/7
HDCP version	2.2
HDCP	Yes

Power consumption (typical)	55 W
Power consumption (sleep)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz

Computer system	Yes
Computer system type	System on Chip (SoC)
Built-in processor	Yes
Operating system installed	Tizen
Operating system version	7.0

Display width	727.3 mm
Display depth	28.5 mm
Display height	421.9 mm
Display weight	5200 g

Package width	817 mm
Package depth	119 mm
Package height	507 mm
Package weight	6900 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %

Certification	Class B 60950-1, 62368-1

Audio out (mini jack)	1

RS-232 output ports	1
Bluetooth	Yes
RS-232 input ports	1
Flash memory	8000 MB
RJ-45 input ports	1
Optional features	STN-L3200C
