Produktbeskrivning

Promote content in any storefront window
Samsung’s OM46B was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

Foster brilliant presentation for all
Even in direct sunlight, the OM46B delivers exceptional picture quality with optimal brightness and high contrast ratio for an uncompromised customer

Marvel at the lifelike colour expression
Dynamic Crystal Display
Immerse your customers in every picture with a wider range of colour. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

Modernise space with slim design
Supporting the best-in-class picture quality is a slim design that complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.

Streamline content management
Samsung’s embedded MagicINFO Player boosts performance, simplifies content management and offers seamless content playback.

Durable Performance
With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMB series continuously provides robust durability.

Clutter-Free Configuration
Cable guide and embedded Wi-Fi provide clean, organised look and allow for content and firmware updates without the need for additional messy cables.



Viktiga egenskaper

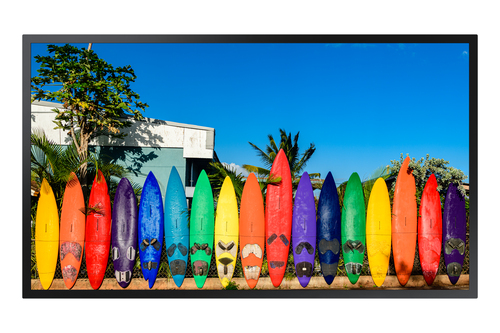

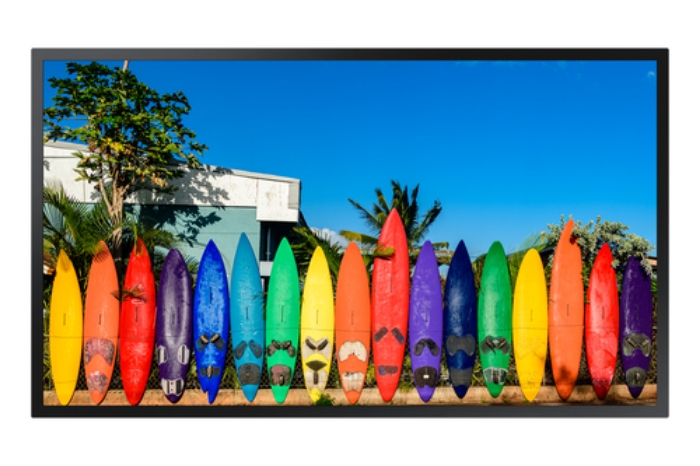

Samsung OM55B. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 3000 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 5.0. Product colour: Black



Teknisk specifikation

Display diagonal	55 "
Display technology	LCD
Panel type	ADS
Display resolution	3840 x 2160 pixels
Display brightness	3000 cd/m²
HD type	4K Ultra HD
Touchscreen	No
Response time	8 ms
Contrast ratio (typical)	1200:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Pixel pitch	0.315 x 0.315 mm
Pixel frequency (max)	594 MHz
Haze rate	1 %
Horizontal scan range	15 - 135 kHz
Vertical scan range	24 - 75 Hz
RGB colour space	NTSC
Colour gamut	72 %

HDMI ports quantity	2
HDMI version	2.0
HDMI input ports quantity	2
DVI port	No
DisplayPorts quantity	1
DisplayPorts in	1
DisplayPort version	1.2
USB port	Yes
USB ports quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	Yes
RS-232 interface	Yes
Infrared data port	Yes
Remote (IR) input	1

Product design	Digital signage flat panel
Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	400 x 400 mm
Bezel width (bottom)	19.1 mm
Bezel width (side)	19.1 mm
Bezel width (top)	19.1 mm
Bezel colour	Dark Blue Gray

Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2

Power consumption (typical)	450 W
Power consumption (sleep)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz

Computer system	Yes
Computer system type	System on Chip (SoC)
Built-in processor	Yes
Operating system installed	Tizen 5.0

Display width	1253.4 mm
Display depth	54.5 mm
Display height	724.2 mm
Display weight	23100 g

Package width	1420 mm
Package depth	178 mm
Package height	879 mm
Package weight	29100 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %

Certification	Class A 60950-1

Wall mountable	Yes

Audio in (mini jack)	No
Audio out (mini jack)	Yes

Flash memory	8000 MB
RS-232 output ports	1
RS-232 input ports	1
RJ-45 output ports	1
RJ-45 input ports	1
Video out	Yes
