Produktbeskrivning

Self-service out of the box with Windows OS

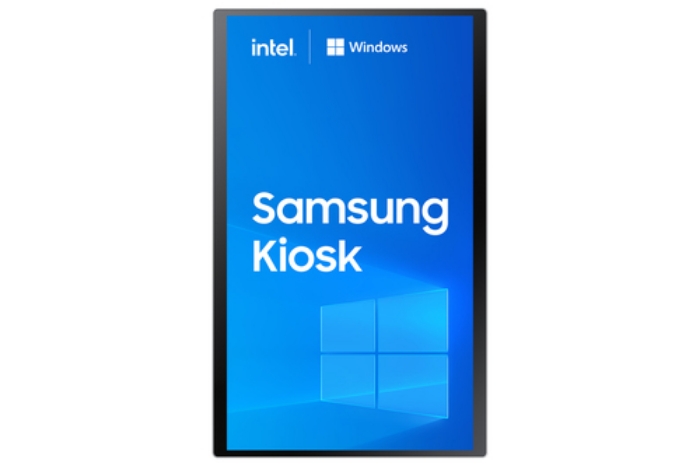

Introducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 IoT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.

Modular functionality to support any payment type
Boost every customer experience with the intuitive all-in-one payment and ordering system with no additional peripherals needed. Adopting a modular design, Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.

All-in-one solution with upgraded compatibility
Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 IoT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business use cases.

Robust yet stable performance
Powered by 11th Gen Intel® Core™ Processor, Samsung Kiosk built on Windows OS features high performance computing power for flexible, stable, and enhanced capabilities that deliver amazing and robust experiences to users in any business environment.

Compact and modern design
Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.

Versatile solution for any scenario
For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.

Keep the screen clean
Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.

Minimize accidents and risks
Shatterproof protection
Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.



Viktiga egenskaper

Samsung KM24C-3. Product design: Kiosk design. Display diagonal: 61 cm (24"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 16/7. Operating system installed: Windows 10 IoT Enterprise. Product colour: White



Teknisk specifikation

Display diagonal	24 "
Display technology	LED
Panel type	ADS
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Capacitive
Native aspect ratio	16:9
Response time	14 ms
Contrast ratio (typical)	1000:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Pixel pitch	0.2745 x 0.2745 mm
Display diagonal (metric)	60.4 cm
Haze rate	25 %
Vertical scan range	48 - 75 Hz
Horizontal scan range	56 - 84.5 kHz
Colour gamut	72 %

USB port	Yes
USB ports quantity	1
DC-in jack	Yes

Product design	Kiosk design
Product colour	White
Placement supported	Indoor
Orientation	Vertical
Screen shape	Flat
VESA mounting	No
Bezel width (bottom)	9.4 mm
Bezel width (side)	17.9 mm
Bezel width (top)	9.4 mm
Anti-glare screen	Yes

Purpose	Commercial
Operating hours (hours/days)	16/7

Power consumption (typical)	88 W
Power consumption (sleep)	0.5 W

Computer system	Yes
Computer system type	System on Chip (SoC)
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Internal memory	256 GB
Operating system installed	Windows 10 IoT Enterprise

Display width	547.9 mm
Display depth	48.8 mm
Display height	334.4 mm
Display weight	4300 g

Package width	620 mm
Package depth	122 mm
Package height	419 mm
Package weight	5700 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Storage temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	10 - 90 %

Certification	Class A FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan)

Safety	CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner :
