Viktiga egenskaper

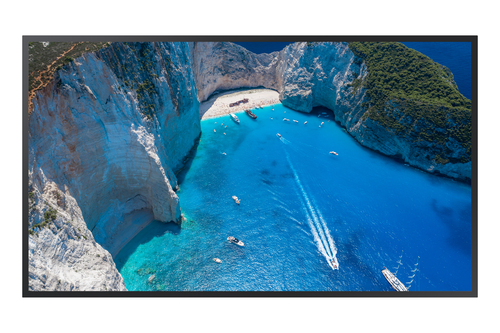

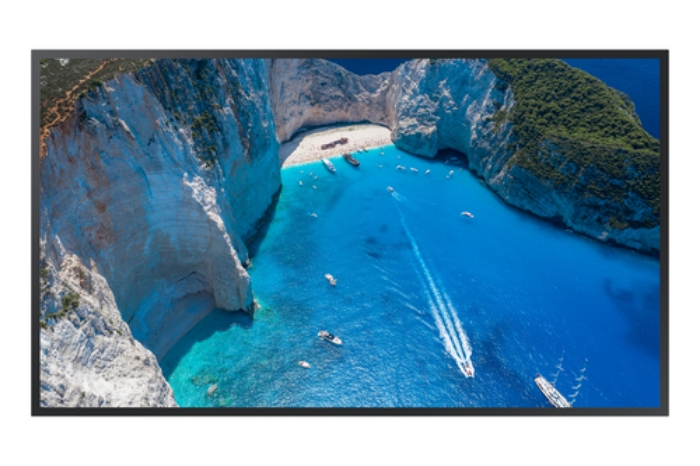

Samsung OM75A. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 4000 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 5.0. Product colour: Black



Teknisk specifikation

Display diagonal	75 "
Display technology	LCD
Panel type	ADS
Display resolution	3840 x 2160 pixels
Display brightness	4000 cd/m²
HD type	4K Ultra HD
Touchscreen	No
Response time	14 ms
Contrast ratio (typical)	1200:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Pixel pitch	0.4296 x 0.4296 mm
Pixel frequency (max)	77 MHz
Horizontal scan range	15 - 85 kHz
Haze rate	2.5 %
Vertical scan range	24 - 75 Hz
RGB colour space	NTSC
Colour gamut	72 %

HDMI ports quantity	2
HDMI version	2.0
DVI port	No
DisplayPorts quantity	1
DisplayPorts in	1
DisplayPort version	1.2
USB port	Yes
USB ports quantity	1
Ethernet LAN	Yes
Wi-Fi	Yes
RS-232 interface	Yes
Infrared data port	Yes
Remote (IR) input	1

Product design	Digital signage flat panel
Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	400 x 400 mm
Bezel width (bottom)	23.9 mm
Bezel width (side)	23.9 mm
Bezel width (top)	23.9 mm
Bezel colour	Charcoal Black

Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2

Power consumption (typical)	900 W
Power consumption (sleep)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz

Computer system	Yes
Computer system type	System on Chip (SoC)
Built-in processor	Yes
Operating system installed	Tizen 5.0

Display width	1703.1 mm
Display depth	85.4 mm
Display height	981.1 mm
Display weight	37200 g

Package width	1890 mm
Package depth	215 mm
Package height	1144 mm
Package weight	48500 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %

Certification	Class A 60950-1

Harmonized System (HS) code	85285210

Audio out (mini jack)	1

RJ-45 input ports	1
RS-232 output ports	1
RS-232 input ports	1
Video out	1
