Data strategy, not just data storage
Ultrastar NVMe enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.

Unlocking the Full Potential of Enterprise SSDs
With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.

Features
Ultrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5” SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes and features power loss protection and 2.5M MTBF (projected) and 1.0 DW/D with a 5 year limited warranty.

Emerging Workloads
Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.



Viktiga egenskaper

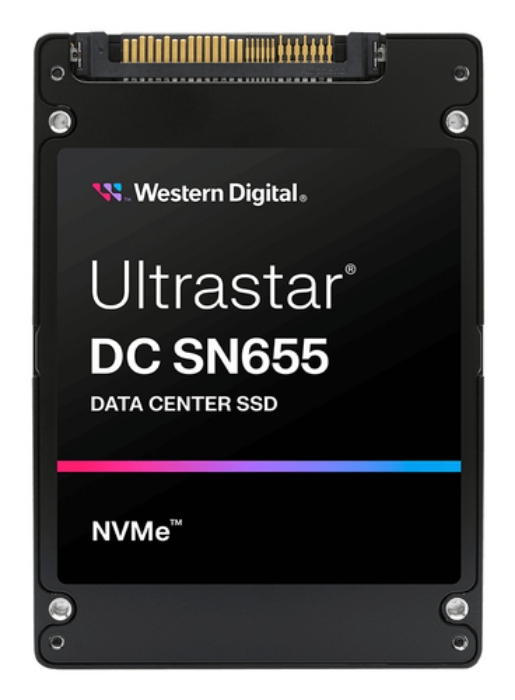

Western Digital Ultrastar DC SN655. SSD capacity: 61.44 TB, SSD form factor: U.3, Read speed: 4300 MB/s, Write speed: 3150 MB/s, Component for: Server/workstation



Teknisk specifikation

SSD capacity	61440 GB
SSD form factor	U.3
Interface	PCI Express 4.0
NVMe	Yes
NVMe version	1.4
Memory type	TLC 3D NAND
Component for	Server/workstation
Hardware encryption	Yes
Read speed	4300 MB/s
Write speed	3150 MB/s
Random read (4KB)	890000 IOPS
Random write (4KB)	290000 IOPS
Read latency	115 µs
Write latency	40 µs
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Mean time between failures (MTBF)	2500000 h
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Server operating systems supported	Yes

Width	69.8 mm
Depth	100.3 mm
Height	14.9 mm
Weight	147.3 g

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C

Warranty period	5 year(s)
