Produktbeskrivning

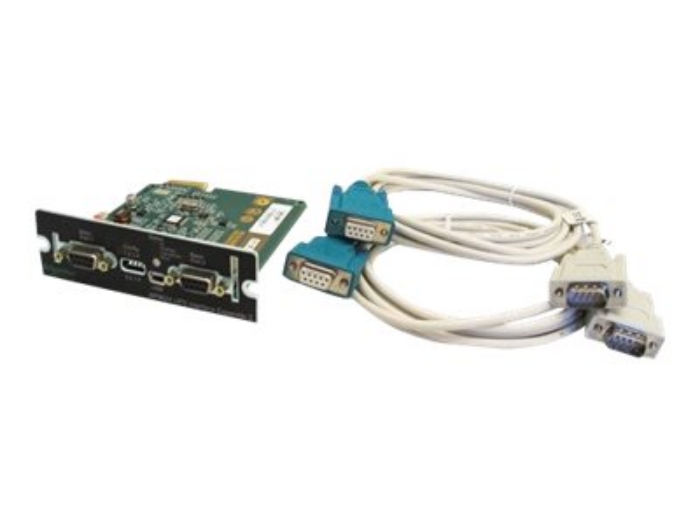

The UPS Interface Expander 2 (AP9624) from APC by Schneider Electric provides two additional computer interface ports for a UPS equipped with a SmartSlot accessory slot.

This enables the UPS and your power management software to provide a graceful system shutdown for up to three network servers or other devices during an extended power outage.

The Interface Expander 2 draws power from the UPS in order to monitor the UPS and report power conditions such as on-battery and low battery events whether the UPS is receiving AC utility power or not.



Egenskaper

● Mounts in all supported APC by Schneider Electric devices equipped with a SmartSlot accessory slot
● Works well in a heterogeneous network
● Servers running different operating systems can monitor the same UPS simultaneously
● Typically supports smart signalling on the serial port of the UPS
● Can delay shutdown of the UPS until all servers have shut down gracefully
● Has operating modes that cause the UPS to shut down after confirmation from all protected devices or after an interval set by the user
● Does not depend on the operation of the network to protect connected devices
● As a hard-wired accessory, the Interface Expander 2 reliably conveys important status messages during poor power conditions



Teknisk specifikation

Typ av enhet	Adapter för administration på distans
Formfaktor	Insticksmodul
Gränssnittstyp (buss)	SmartSlot

Portar	RS-232 x 2
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	RS-232
Funktioner	Fast programvara kan uppdateras

Gränssnitt	2 x administration - 9 pin D-Sub (DB-9)

Medföljande kablar	2 x seriell kabel (extern)
Standarder som följs	C-Tick, EN55024, EN55022 klass A, IC, IEC 62040-2, RoHS, FCC Part 15 A, REACH, China RoHS

Bredd	12.1 cm
Djup	11.4 cm
Höjd	3.8 cm
Vikt	70 g

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
