Produktbeskrivning

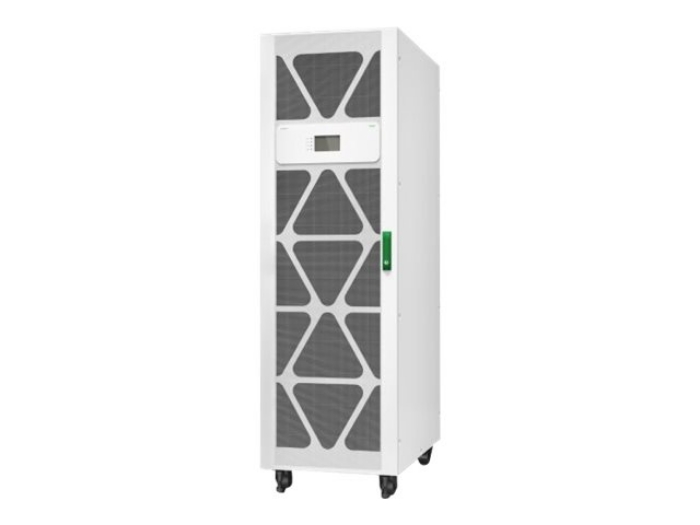

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60 kVA 3-phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management.



Egenskaper

● Front-access servicing simplifies installation and UPS maintenance while minimizing space requirements
● Quickly roll the compact and lightweight UPS into position
● Easy loop test verifies UPS performance before you connect your load, without the need for a load bank
● Wide input voltage window saves your battery power for when you really need it - during power cuts
● Multiple units can be placed in parallel to meet power capacity and redundancy requirements



Teknisk specifikation

Typ av enhet	UPS - extern
Servicepaket	Start-Up Service 5X8
Färg	Vit

UPS-teknik	Online
Inspänning	AC 380/400/415 V
Inspänningens område	AC 342 - 477 V
Tillhandahållen frekvens	50/60 Hz
Ingångskablage	3-fas
Erforderlig frekvens	40 - 70 Hz
Inmatningsanslutningar	Fast 5-trådig (3PH + N + G)
Utspänning	AC 380/400/415 V ± 3% - 50/60 Hz
Effektkapacitet	60 kW / 60000 VA
Utvågform	Sinusvåg

Typ	Utan batteri

Inkluderade tillbehör	Dammfilter
Egenskaper	Pekskärmsgränssnitt, Hörbart larm, inbyggd statisk förbikoppling, pekskärms-LCD-display, Eco-Mode, synligt larm, stöd för VRLA-batteri
Standarder som följs	IEC 62040-3, IEC 62040-1-1, IEC 62040-2, RoHS, WEEE, REACH, IP20, EAC, RCM, ISTA 2B, IEC 62040-4

Service och support	Begränsad garanti - 1 år - på platsen

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	65 dBA

Bredd	60 cm
Djup	100 cm
Höjd	197 cm
Vikt	311 kg

Emballagets bredd	75 cm
Emballagets djup	112.5 cm
Emballagets höjd	210.2 cm
Emballagets vikt	360 kg
