Produktbeskrivning

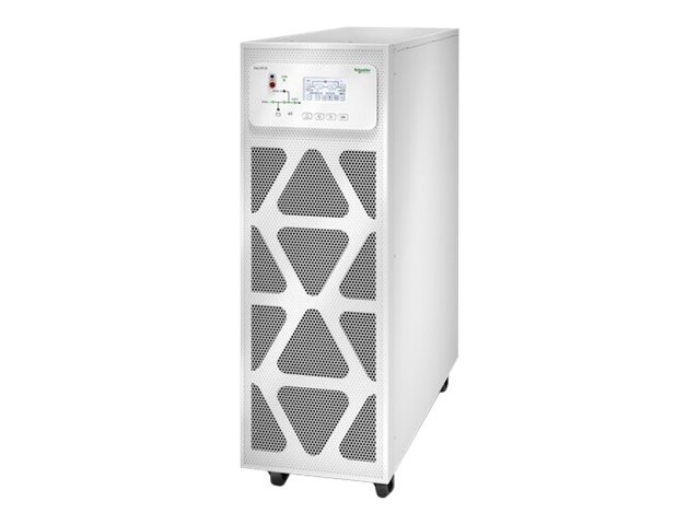

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments.



Egenskaper

Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Easy to install fast
Quickly roll the compact and lightweight UPS into position.



Teknisk specifikation

Typ av enhet	UPS - extern
Färg	Vit, RAL 9003

UPS-teknik	Online
Inspänning	AC 380/400/415 V
Inspänningens område	AC 304 - 477 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	45 - 65 Hz
Utspänning	AC 380/400/415 V ± 1.5% - 50/60 Hz
Effektkapacitet	30 kW / 30000 VA
Utvågform	Sinusvåg
Kretsskydd	Säkring
PF (Power Factor)	0.99
THD (Total Harmonic Distortion)	3 %

Typ	Utan batteri

Gränssnitt för fjärradministration	RS-232, RS-485, USB

Expansionskortplatser	Expansionskortplats

Egenskaper	LCD-bildskärm, inbyggd förbikoppling för underhåll
Standarder som följs	IEC 62040-3, IEC 62040-2, WEEE, IP20, EAC, RCM, IEC 62040-1, ISTA 2B, IEC 62040-4

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	63 dBA

Bredd	25 cm
Djup	80 cm
Höjd	77 cm
Vikt	60 kg

Emballagets bredd	40 cm
Emballagets djup	98.2 cm
Emballagets höjd	101.5 cm
Emballagets vikt	77 kg
