Produktbeskrivning

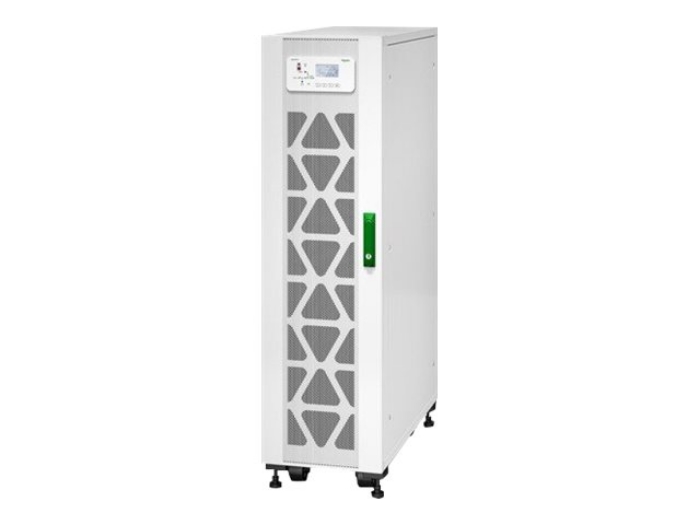

The Schneider Electric Easy UPS 3S supplies power stability with robust electrical specifications and long-lasting performance to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide operating temperature window and strong overload protection, all in a compact and lightweight footprint. With its exceptional combination of low Total Cost of Ownership, competitive specifications, and ease of installation, use, and service, the Schneider Electric Easy UPS 3S is the easy choice for your business continuity. Schneider Electric recommends purchasing Start-Up Service to optimize your system's performance, quality, and safety.



Egenskaper

Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements.

Replaceable dust filters
Replaceable dust filters protect the UPS in harsh environments.

Wide input voltage window
Wide input voltage window saves your battery power for when you really need it - during power cuts!

Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.

Easy to install fast
Quickly roll the compact and lightweight UPS into position.

Front-access servicing
Front-access servicing simplifies installation and UPS maintenance while minimizing space requirements.

ECO Mode
ECO Mode is an operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Easy Loop Test
Easy Loop Test verifies UPS performance before you connect your load, without the need for a load bank.

Straightforward installation
Straightforward installation includes the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.



Teknisk specifikation

Typ av enhet	UPS - extern
Färg	Vit

Inspänning	AC 400 V
Inspänningens område	AC 304 - 477 V
Tillhandahållen frekvens	50/60 Hz
Ingångskablage	3-fas
Erforderlig frekvens	45 - 65 Hz
Utspänning	AC 220/230/240 V ± 3% - 50/60 Hz
Effektkapacitet	15 kW / 15000 VA
PF (Power Factor)	0.99

Typ	Utan batteri

Inkluderade tillbehör	Dammfilter
Egenskaper	LCD-bildskärm, LED-indikatorer, Eco-Mode
Standarder som följs	IEC 62040-3, IEC 62040-2, RoHS, WEEE, REACH, IP20, EAC, RCM, ISTA 2B, IEC 62040-4

Service och support	Begränsad garanti - 1 år - på platsen

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	60 dBA

Bredd	38 cm
Djup	90.7 cm
Höjd	140 cm
Vikt	130 kg

Emballagets bredd	56.3 cm
Emballagets djup	101.4 cm
Emballagets höjd	164 cm
Emballagets vikt	145 kg
