Produktbeskrivning

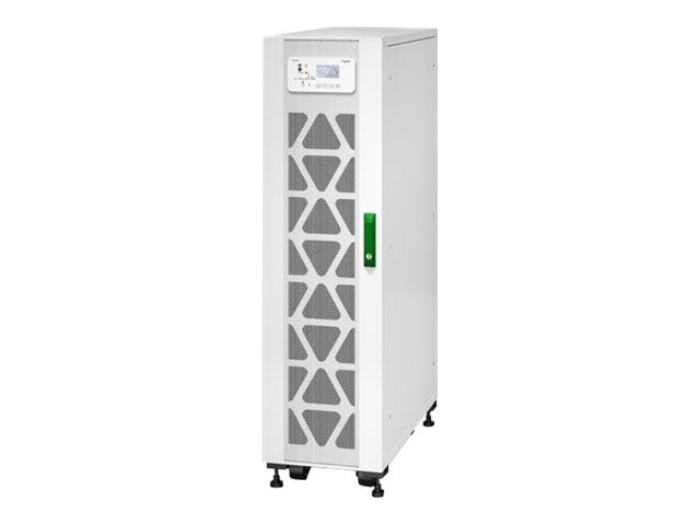

The Schneider Electric Easy UPS 3S supplies power stability with robust electrical specifications and long-lasting performance to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide operating temperature window and strong overload protection, all in a compact and lightweight footprint. With its exceptional combination of low Total Cost of Ownership, competitive specifications, and ease of installation, use, and service, the Schneider Electric Easy UPS 3S is the easy choice for your business continuity. Schneider Electric recommends purchasing Start-Up Service to optimize your system's performance, quality, and safety.



Egenskaper

Easy loop test
Verifies UPS performance before you connect your load, without the need for a load bank.

Easy to install fast
Quickly roll the compact and lightweight UPS into position.

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.

ECO mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.



Teknisk specifikation

Typ av enhet	UPS - extern
Färg	Vit

Inspänning	AC 400 V
Inspänningens område	AC 304 - 477 V
Tillhandahållen frekvens	50/60 Hz
Ingångskablage	3-fas
Erforderlig frekvens	45 - 65 Hz
Utspänning	AC 400 V ± 3% - 50/60 Hz
Effektkapacitet	20 kW / 20000 VA
PF (Power Factor)	0.99

Typ	Utan batteri

Inkluderade tillbehör	Dammfilter
Egenskaper	LCD-bildskärm, LED-indikatorer
Standarder som följs	IEC 62040-3, IEC 62040-1-1, IEC 62040-2, WEEE, IP20, EAC, RCM, ISTA 2B, IEC 62040-4

Service och support	Begränsad garanti - 1 år - på platsen

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	60 dBA

Bredd	38 cm
Djup	92.8 cm
Höjd	140 cm
Vikt	122 kg

Emballagets bredd	56.3 cm
Emballagets djup	101.4 cm
Emballagets höjd	164 cm
Emballagets vikt	158 kg
