Produktbeskrivning

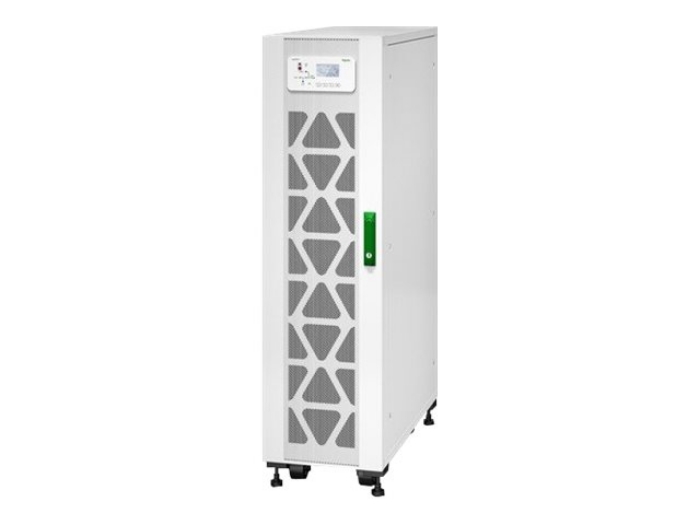

The Schneider Electric Easy UPS 3S supplies power stability with robust electrical specifications and long-lasting performance to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide operating temperature window and strong overload protection, all in a compact and lightweight footprint. With its exceptional combination of low Total Cost of Ownership, competitive specifications, and ease of installation, use, and service, the Schneider Electric Easy UPS 3S is the easy choice for your business continuity. Schneider Electric recommends purchasing Start-Up Service to optimize your system’s performance, quality, and safety.



Egenskaper

● Multiple units can be placed in parallel to meet power capacity and redundancy requirements
● Replaceable dust filters protect the UPS in harsh environment
● Saves your battery power for when you really need it - during power cuts



Teknisk specifikation

Typ av enhet	UPS - extern
Färg	Vit

Inspänning	AC 400 V
Inspänningens område	AC 304 - 477 V
Tillhandahållen frekvens	50/60 Hz
Ingångskablage	3-fas
Erforderlig frekvens	45 - 65 Hz
Utspänning	AC 400 V ± 3% - 50/60 Hz
Effektkapacitet	20 kW / 20000 VA

Inkluderade tillbehör	Dammfilter
Standarder som följs	IEC 62040-3, IEC 62040-1-1, IEC 62040-2, WEEE, IP20, EAC, RCM, ISTA 2B, IEC 62040-4

Service och support	Begränsad garanti - 1 år - på platsen

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	60 dBA

Bredd	38 cm
Djup	92.8 cm
Höjd	140 cm
Vikt	446 kg

Emballagets bredd	56.3 cm
Emballagets djup	101.4 cm
Emballagets höjd	164 cm
Emballagets vikt	494 kg
