Produktbeskrivning

High-density technology and full front access make this UPS a footprint saver well suited for confined spaces. Consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.



Egenskaper

Compact UPS
High-density technology and full front access make this UPS a footprint saver well suited for confined spaces.

High efficiency in double conversion mode
Consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Econversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Robust operation
No power derating in kW up to 40°C or 104°F.

Parallel-redundant capability
Powers the connected equipment with multiple uninterruptible power supplies and redundant fan design to increase system redundancy.

Flexible DC bus
Optimizes battery sizing and supports a wide range of energy storage technologies, including VRLA, Li-ion, and NiCd batteries.

Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.

Modular UPS design
Provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.



Teknisk specifikation

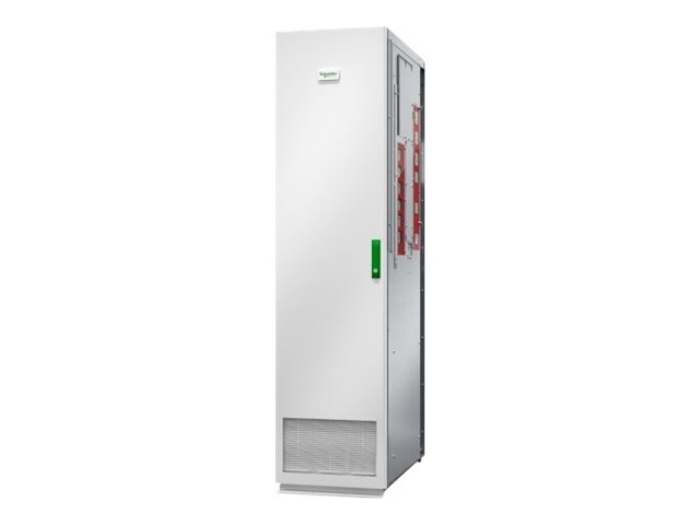

Typ av enhet	Förbikopplare - extern
Färg	Vit

Inspänning	AC 400 V
Utspänning	AC 400 V

Egenskaper	Backfeed, för 200-500 kW UPS

Service och support	Begränsad garanti - 18 månader

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)

Bredd	50 cm
Djup	84.7 cm
Höjd	197 cm
Vikt	175 kg

Emballagets bredd	63.5 cm
Emballagets djup	99 cm
Emballagets höjd	213.8 cm
Emballagets vikt	260 kg

Designat för	P/N: GVL200K500DS, GVL300K500DS, GVL400K500DS, GVL500KDS
