Produktbeskrivning

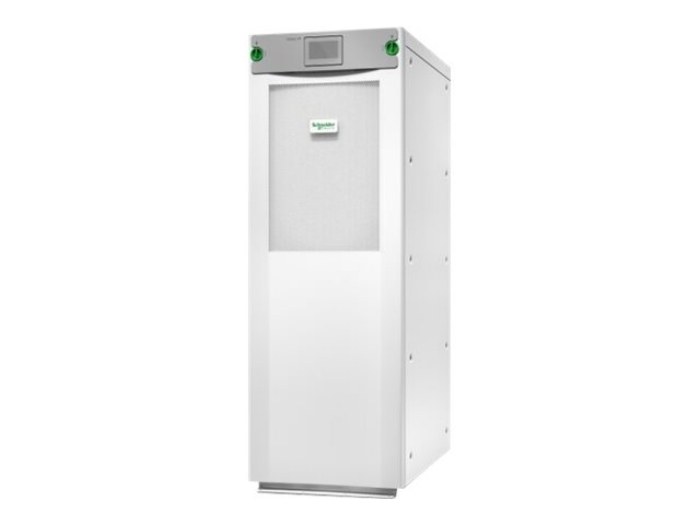

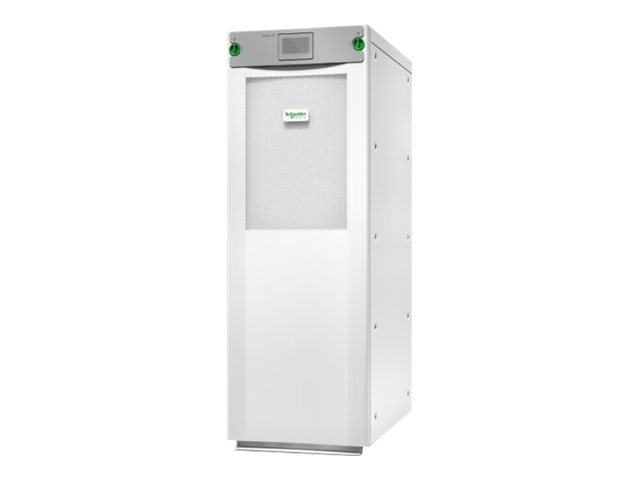

Highly efficient, easy-to-deploy 3-phase UPS brings excellent power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime.



Egenskaper

Parallel-capacity capable
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.

Parallel-redundant capable
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy.

Built-in backfeed protection
Full built-in backfeed contactor ensures that no electricity is sent back to the grid.

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

Modular UPS design
Provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.



Teknisk specifikation

Typ av enhet	UPS - extern
Servicepaket	Start-Up Service 5X8
Färg	Vit, RAL 9003

UPS-teknik	Online
Inspänning	AC 400 V
Inspänningens område	AC 340 - 460 V
Tillhandahållen frekvens	50/60 Hz
Ingångskablage	3-fas
Utspänning	AC 380/400/415 V ± 3% - 50/60 Hz
Effektkapacitet	40 kW / 40000 VA
Utvågform	Sinusvåg

Typ	Utan batteri kan byggas ut
Antal	4 (stödd)

Inkluderade tillbehör	Dammfilter
Egenskaper	Hörbart larm, inbyggd statisk förbikoppling, överbelastningsskydd, pekskärms-LCD-display
Standarder som följs	IEC 62040-1-1, IEC 62040-2, RoHS, FCC Part 15 A, REACH, OSHPD

Service och support	Begränsad garanti - 1 år - på platsen

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	61 dBA

Bredd	52.1 cm
Djup	84.7 cm
Höjd	148.5 cm
Vikt	200 kg

Emballagets bredd	64 cm
Emballagets djup	99 cm
Emballagets höjd	168 cm
Emballagets vikt	200 kg
