Produktbeskrivning

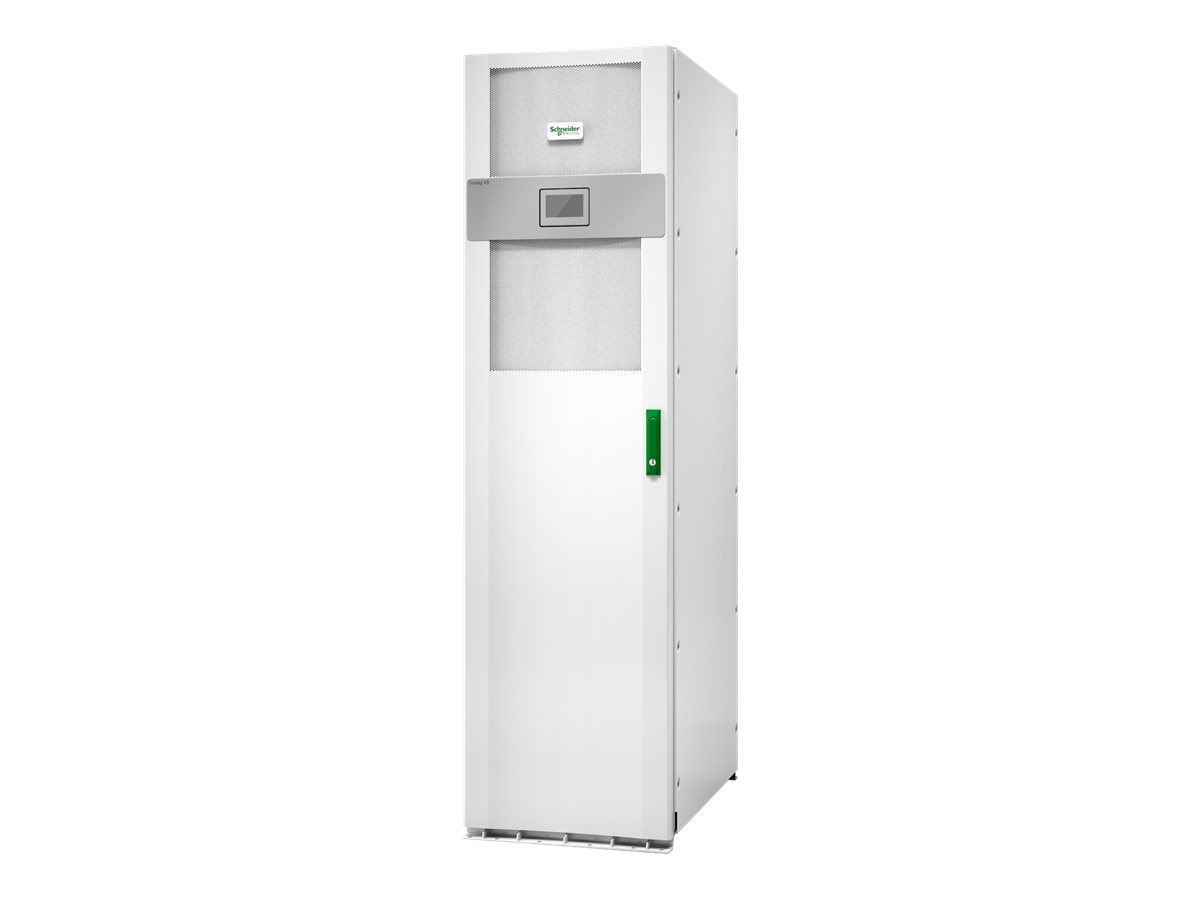

Highly efficient, easy-to-deploy UPS that brings better power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications.



Egenskaper

Efficient cooling
Designed to operate in environments with a humidity range of 0 - 95% (non-condensing) and temperatures up to 40°C, ensuring reliable performance under various conditions.

Comprehensive compliance
Meets a wide array of standards including EN 62040-2, FCC Part 15 A, IEC 62040-1-1, IP20, OSHPD, REACH, and RoHS, making it a trustworthy choice for safety and environmental considerations.

Advanced power management
Features such as audible alarm, built-in static bypass, overload protection, and a touchscreen LCD display offer sophisticated control and monitoring of power conditions.

Robust power capacity
With a power capacity of 60,000 VA and providing 60 kW of power, it supports substantial energy requirements with efficiency and reliability.

Stable power supply
Delivers a sinewave output waveform with an on-line UPS technology, ensuring a stable and continuous power supply with a voltage provided margin of ± 1%.



Teknisk specifikation

Typ av enhet	UPS - extern
Servicepaket	Start-Up Service 5X8
Färg	Vit, RAL 9003

UPS-teknik	Online
Inspänning	AC 380/400/415 V
Inspänningens område	AC 340 - 460 V
Tillhandahållen frekvens	50/60 Hz
Ingångskablage	3-fas
Erforderlig frekvens	40 - 70 Hz
Utspänning	AC 380/400/415 V ± 1% - 50/60 Hz
Effektkapacitet	60 kW / 60000 VA
Utvågform	Sinusvåg

Typ	Utan batteri

Inkluderade tillbehör	Dammfilter
Egenskaper	Hörbart larm, inbyggd statisk förbikoppling, överbelastningsskydd, pekskärms-LCD-display
Standarder som följs	IEC 62040-1-1, RoHS, FCC Part 15 A, REACH, EN 62040-2, IP20, OSHPD

Service och support	Begränsad garanti - 1 år - på platsen

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	54 dBA

Bredd	55 cm
Djup	84.7 cm
Höjd	197 cm
Vikt	250 kg

Emballagets bredd	75.5 cm
Emballagets djup	101 cm
Emballagets höjd	208.2 cm
Emballagets vikt	250 kg
