Produktbeskrivning

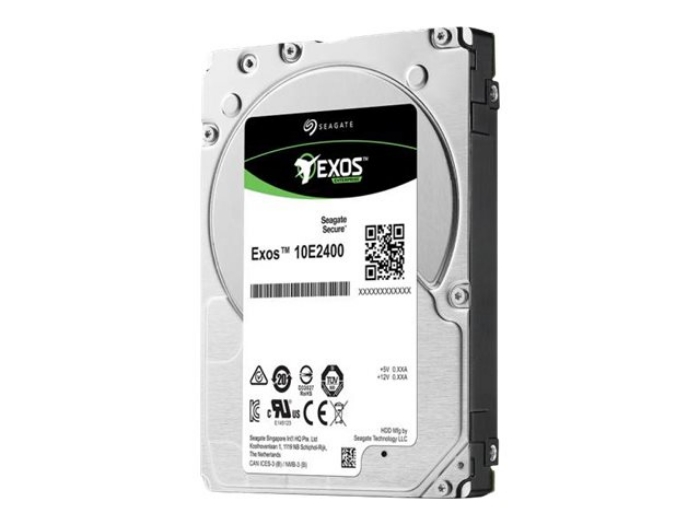

Seagate Exos 10E2400 enterprise hard drives are incredibly fast hard drives in a 2.5-inch form factor, and intended for traditional data centers where density, power consumption and data integrity are paramount.
Egenskaper
The perfect match of high capacity and high performanceThe high capacity and small 2.5-inch footprint of the Exos 10E2400 drive enables data centers to keep pace with data growth and optimize data center real estate. A single advanced format interface model lets you future-proof your storage infrastructure. The Seagate Enhanced Caching feature accelerates read and write I/O operations, preventing applications from slowing down under peak usage conditions. The 12Gb/s SAS interface provides improved scalability.
Maximize storage investments for the long haulExos 10E2400 offers Protection Information (PI) to help protect against data corruption, and Seagate PowerChoice technology for T10-compliant power management enables IT organizations to tailor systems for enhanced power consumption. RAID recovery is faster and safer with the help of the Seagate RAID Rebuild technology option.
Data security featuresSeagate Secure SED and FIPS 140-2 government-grade models offer hardware-based security to help protect data-at-rest. With Instant Secure Erase, drive retirement is safe, fast and cost-effective. Seagate Secure models meet the NIST 800-88 media sanitization specification and support the Trusted Computer Group (TCG) standard.
Teknisk specifikation
Allmänt
Typ av enhet | Hybridhårddisk - inbyggd |
Kapacitet | 1.8 TB |
Flashminneskapacitet | 16 GB |
NAND-flashminnestyp | eMLC (enterprise multi-level cell) |
Formfaktor | 2.5" SFF |
Gränssnitt | SAS 12Gb/s |
Buffertstorlek | 256 MB |
Egenskaper | PowerChoice, Protection Information (PI), Seagate RAID Rebuild, Instant Secure Erase (ISE), avancerat format 512e, avancerat format 4Kn, Intelligent NAND Endurance Management, Seagate Fast Format |
Bredd | 70.1 mm |
Djup | 100.45 mm |
Höjd | 15 mm |
Vikt | 230 g |
Prestanda
Hårddiskens överföringshastighet | 1.2 GBps (extern) |
Intern datafrekvens | 270 MBps |
Genomsnittlig åtkomsttid | 2.9 ms |
Spindelhastighet | 10000 rpm |
Pålitlighet
Oåterkalleligt fel | 1 per 10^16 |
Expansion och anslutningar
Gränssnitt | 1 x SAS 12 Gb/s |
Kompatibelt fack | 2.5" SFF |
Strömtillförsel
Strömkonsumtion | 7.5 Watt (aktiv) 4.4 Watt (inaktiv) |
Tillverkarens garanti
Service och support | Begränsad garanti - 5 år |
Miljöparametrar
Min temperatur vid drift | 5 °C |
Max temperatur vid drift | 55 °C |
Min temperatur vid förvaring | -40 °C |
Max temperatur vid förvaring | 70 °C |
Stöttolerans (vid drift) | 40 g @ 11 ms |
Stöttolerans (i vila) | 400 g @ 2 ms |
Vibrationstolerans (vid drift) | 0.5 g @ 0-500 Hz |
Vibrationstolerans (i vila) | 3 g @ 0-500 Hz |
