Produktbeskrivning
Compact and lightweight - supports your mobile application with 100mm/s print speed.

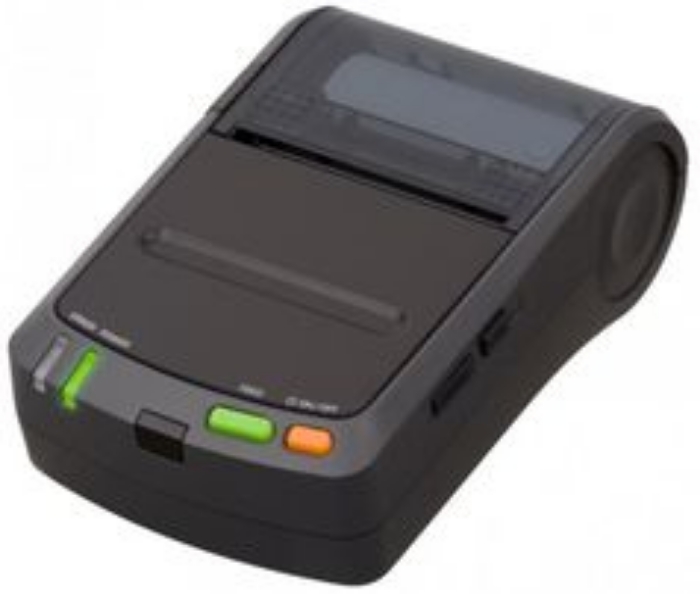

Completing the DPU-S Series, Seiko Instruments introduces DPU-S245 with a paper width of 2" (58mm). This compact and lightweight printer with a high printing speed of 100mm/s has a serial RS232C, USB 2.0 as well an IrDA Ver. 1.2 interface. In addition there is a Bluetooth version and an Adroid SDK available. The "Easy Paper Operation" allows the very easy and fast replacement of paper rolls without slowing you down. Alphanumeric, graphic and barcode printing is supported. For mobile operation there is a special carrying case with belt strip available.
- Bluetooth, USB, IrDA (ver1.2) and serial interface
- Max. print speed: 100 mm/s
- Compact and lightweight
- Easy paper operation
- Windows drivers (XP, Vista, 7) (32/64bit)
- Android SDK
- Software library (Windows CE 5.0, Windows Mobile 5.0 / 6.0)
- Label print
Viktiga egenskaper
Seiko Instruments DPU-S245. Print technology: Thermal, Type: Mobile printer, Print speed: 100 mm/sec. Maximum roll diameter: 3.8 cm, Supported paper width: 58 mm, Maximum printing width: 4.8 cm. Connectivity technology: Wired & Wireless, Standard interfaces: IrDA, Serial, USB 2.0. Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, EAN8, ITF, MaxiCode, PDF417, QR..., Certification: FCC, CE, VCCI, CCC. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Thermal |
|---|
| Type | Mobile printer |
|---|
| Colour | No |
|---|
| Print speed | 100 mm/sec |
|---|
Paper handling
| Supported paper width | 58 mm |
|---|
| Maximum roll diameter | 38 mm |
|---|
| Maximum printing width | 48 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Serial interface | Yes |
|---|
| Standard interfaces | IrDA,Serial,USB 2.0 |
|---|
| Serial ports quantity | 1 |
|---|
Network
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
Features
| Built-in barcodes | CODABAR (NW-7),Code 128 (A/B/C),Code 39,Data Matrix,EAN13,EAN8,ITF,MaxiCode,PDF417,QR Code,UPC-A,UPC-E |
|---|
| Certification | FCC, CE, VCCI, CCC |
|---|
Design
| Product colour | Black |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
Operational conditions
| Operating temperature (T-T) | -10 - 50 °C |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
Weight & dimensions
| Width | 83 mm |
|---|
| Depth | 130 mm |
|---|
| Height | 45 mm |
|---|
| Weight | 280 g |
|---|
Packaging data
| Cables included | AC,Serial,USB |
|---|
Packaging content
| AC adapter included | Yes |
|---|
Other features
| Rechargeable | Yes |
|---|
| LED indicators | Yes |
|---|
| Buffer size | 4 KB |
|---|
