Produktbeskrivning

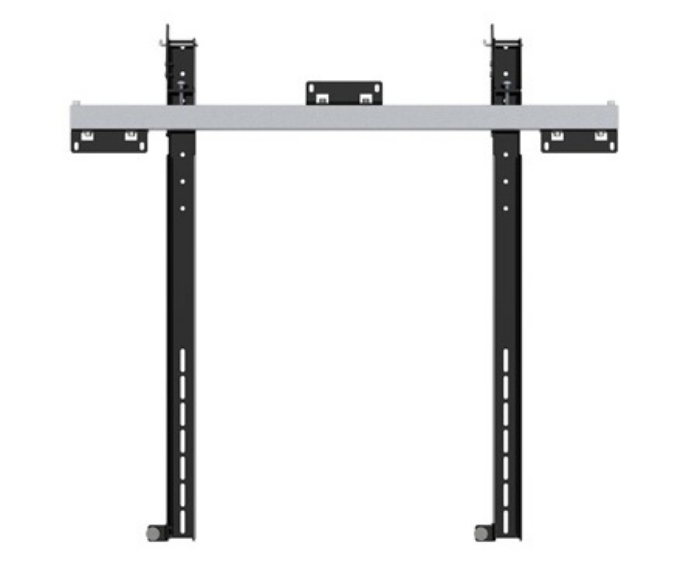

Are you planning on setting up one or several really large displays? This universal wall bracket with modular design allow the easy and secure mounting of displays with approximate size 70”-82”, either singly or as video rows. The display or displays can be mounted in portrait or landscape mode, selected during mounting. The module enables the display to be adjusted both vertically and depthwise. The fine adjustment of video rows is very easy. Supplied in a single package.



Viktiga egenskaper

SMS Smart Media Solutions PW010010. Maximum weight capacity: 150 kg, Minimum screen size: 177.8 cm (70"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 300 x 900 mm, Maximum VESA mount: 900 x 300 mm. Product colour: Aluminium, Black



Teknisk specifikation

Maximum weight capacity	150 kg
Maximum weight capacity (per display)	150 kg
Minimum screen size	70 "
Maximum screen size	70 "
Mounting type	Wall
Minimum VESA mount	300 x 900 mm
Maximum VESA mount	900 x 300 mm

Distance to the wall (max)	47 mm

Product colour	Aluminium,Black
Anti-theft function	Yes
Accepts padlock	Yes

Width	1000 mm
Depth	47 mm
Height	953 mm
Weight	7800 g

Manual	Yes

Warranty period	5 year(s)
VESA mount included	Yes

Type of shelf-placement	Wall

Harmonized System (HS) code	85299097
