Produktbeskrivning

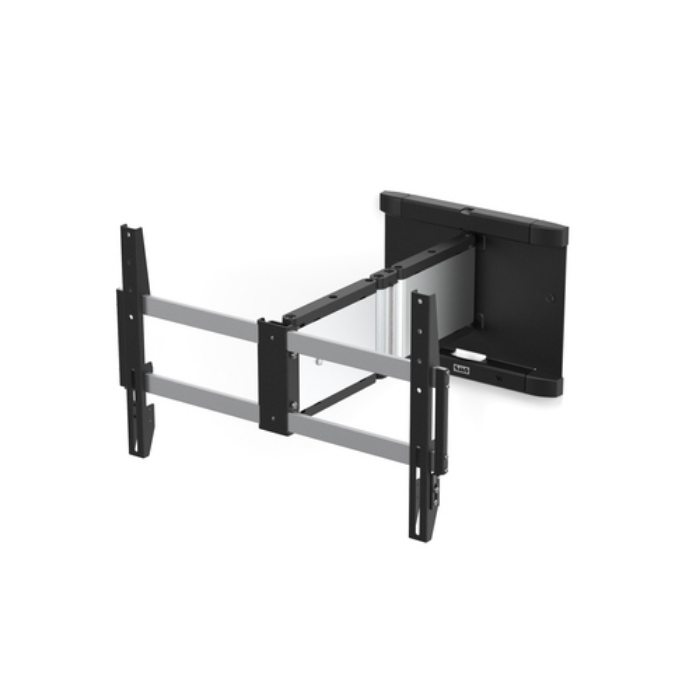

SMS Icon 3D Large, our large wall mount with an extendable arm, is secure, gracile and strong. This is the weightlifter in the Icon 3D family, supporting displays up to 40 kg. Icon 3D Large can give your display the distance of over 60 cm from the wall, and you can then affix your display at 10 cm from the wall. Smoothly swivel the display up to 180 degrees, just with the touch of a hand. SMS Icon 3D Large is available in Aluminum/Black.
Distance from wall: approximately 620 mm (fully extended).




Viktiga egenskaper

SMS Smart Media Solutions 14-001-5. Maximum weight capacity: 40 kg, Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 400 x 600 mm



Teknisk specifikation

Maximum weight capacity	40 kg
Mounting type	Wall
Maximum weight capacity (per display)	40 kg
Suitable for TV	Yes
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	400 x 600 mm
Number of displays supported	1
Distance to the wall (min)	100 mm
Distance to the wall (max)	600 mm

Adjustable depth	Yes

Quantity per pack	1 pc(s)

Warranty period	5 year(s)
