Produktbeskrivning

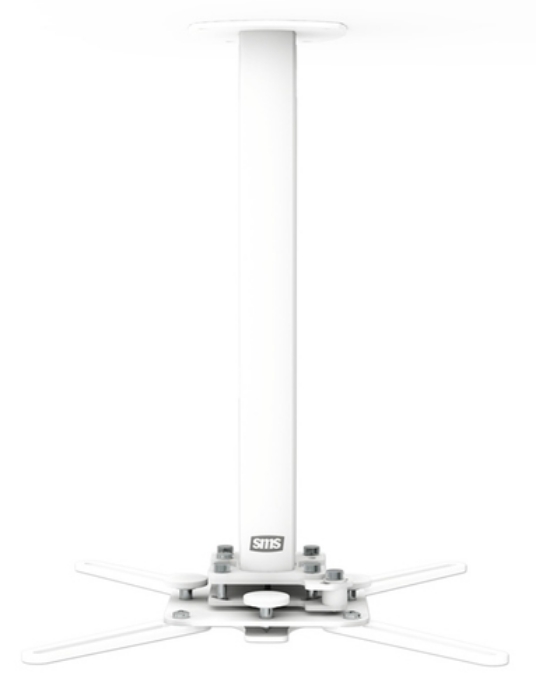

SMS Projector Precision CM V has a clever telescopic arm - just choose length and adjust the image simply and accurately. SMS Projector Precision CM V will hold heavy projectors secure in the selected position.
Fine adjustment, including tilt, is made directly on the projector bracket, without need for tools. This minimises the need for image adjustment on the projector, and gives significantly more rapid and easier installation. Cables are concealed in the cable holder of the column. A universal slide is included, to be used with most heavy projectors, up to 20 kg load weight. A very stable solution that is also easy to service. Available in four versions that measure, when fully extended, 535, 735, 1235 and 1735 mm, respectively.
New version avaliable:
A new smart, white ceiling cover for improved fittingFor simpler and more attractive installation, there is a new inner ceiling cover that can be mounted last, after all the cables have been laid.All plastic fittings have been updated to whiteShorter arms, suitable for use with projectors with small hole patterns.Maximum load: 20 kg. Finish: white.
Mount from light rigging?
Use our SMS Clamp (FS040013) together with SMS Projector Precision CM V to attach the projector mount from a light rigging. SMS Clamp fits all lengths. Maximum load weight 15 kg when using SMS Clamp.
Viktiga egenskaper
SMS Smart Media Solutions CMV385-535. Mounting type: Ceiling, Maximum weight capacity: 20 kg, Product colour: White. Weight: 2.5 kg
Teknisk specifikation
Performance
| Mounting type | Ceiling |
|---|
| Maximum weight capacity | 20 kg |
|---|
| Product colour | White |
|---|
| Swivel angle | 8 ° |
|---|
| Ceiling mounting tube length (max) | 535 cm |
|---|
| Ceiling mounting tube length (min) | 385 cm |
|---|
Weight & dimensions
| Weight | 2500 g |
|---|
Technical details
| Warranty period | 5 year(s) |
|---|
Logistics data
| Harmonized System (HS) code | 83024190 |
|---|
