Produktbeskrivning

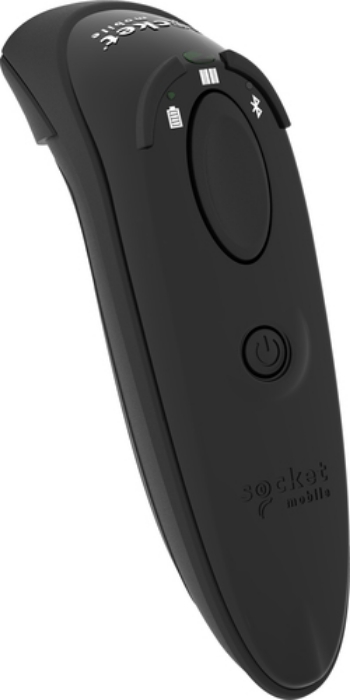

The DuraScan D730 v20 is the latest and improved version of our laser Bluetooth® barcode scanner. Built for mobility, the D730 v20 has been redesigned for improved durability. It is IP54 compliant, ideal for warehousing and manufacturing application customers. In addition, Socket Mobile has added a field-replaceable battery based on customer feedback. The scanner is MFi certified and fully compatible with Android and Windows with Capture SDK versions available.
The D730 has a class 2 laser that scans through plastic or glass, in bright or poor lighting conditions, sideways, upside down, or straight at imperfect barcodes. It features great ergonomics, designed for comfort and extended use; it is light, highly durable and small enough to fit in your pocket. The D730 is fully backwards compatible with prior versions of Socket Mobile’s SDK and can be used immediately with any application using native scanning support. To enjoy optimal reliability and performance from the D730 v20, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of Capture SDK.
Viktiga egenskaper
Socket Mobile DuraScan D730. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 30 m. Product colour: Black, International Protection (IP) code: IP54. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 1500 mAh. Weight: 109 g, Width: 37.1 mm, Depth: 40.1 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D |
|---|
| 2D (matrix & stacked) barcodes supported | Not supported |
|---|
| Sensor type | Laser |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1 Databar Limited,GS1-128 (UCC/EAN-128),ISBN,Industrial 2 of 5,Interleaved 2 of 5,MSI,Matrix 2 of 5,POSTNET,Plessey,Telepen,UPC-A,UPC-E |
|---|
| Light levels (direct sunlight) | 4800 - 86000 lx |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Wireless range | 30 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
Performance
| Product colour | Black |
|---|
| International Protection (IP) code | IP54 |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 1500 mAh |
|---|
| Number of reads per charge | 90000 |
|---|
| Battery life | 26 h |
|---|
| Charging time | 8 h |
|---|
Weight & dimensions
| Width | 37.1 mm |
|---|
| Depth | 40.1 mm |
|---|
| Height | 132.2 mm |
|---|
| Weight | 109 g |
|---|
Packaging data
| Charging base | Yes |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
