Produktbeskrivning

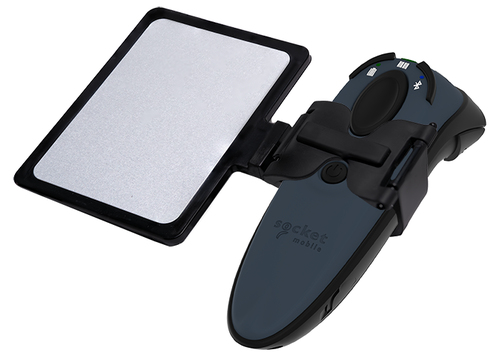

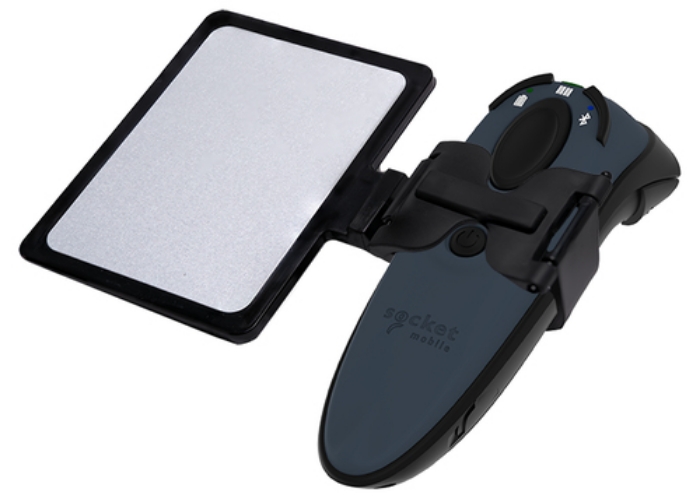

DuraScan D740

The D740 reads 1D, 2D, OCR A & B fonts, OCR USC, OCR passport, OCR MICR (E13B) fonts, and DotCode, covering most travel identification documents, including passports, international IDs, and micro QR codes on drivers’ licenses. It is an excellent option for solutions requiring age verification and tracking cannabis, alcohol, or tobacco sales.



Viktiga egenskaper

Socket Mobile D740. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Black, Grey, International Protection (IP) code: IP54, Protection features: Drop proof. Power source type: Battery, Battery voltage: 3.7 V, Battery life: 20 h. Width: 38.1 mm, Depth: 132 mm, Height: 132.2 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Sensor type	LED
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,ISSN,Interleaved 2 of 5,JAN,MSI,Matrix 2 of 5,UPC-A,UPC-E
Light levels (direct sunlight)	0 - 100000 lx

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	10 m
Bluetooth version	2.1+EDR

Product colour	Black,Grey
International Protection (IP) code	IP54
Protection features	Drop proof
LED indicators	Yes

Power source type	Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	1400 mAh
Battery voltage	3.7 V
Number of reads per charge	85000
Battery life	20 h
Charging time	6 h

Width	38.1 mm
Depth	132 mm
Height	132.2 mm

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Compliance certificates	RoHS
