Produktbeskrivning

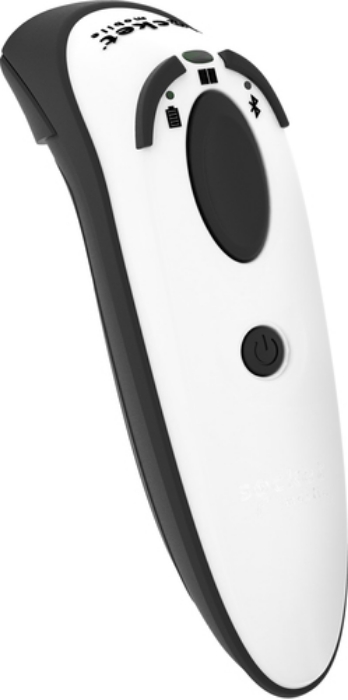

The DuraScan D740 v20 is the latest and improved version of the universal Bluetooth® barcode scanner. Built for mobility and redesigned for improved durability, the D740 v20 is IP54 compliant, ideal for warehousing and manufacturing application customers. In addition, Socket Mobile has added a field-replaceable battery based on customer feedback. The scanner is MFi certified and fully compatible with Android and Windows with different Capture SDK versions available.
The D740 v20 reads all 2D/1D barcodes on paper and screen. It features great ergonomics and fits perfectly in your hand. It is designed for comfort and extended use; it is light, highly durable and small enough to fit in your pocket. The D740 v20 is fully backwards compatible with prior versions of Socket Mobile’s SDK and can be used immediately with any application using native scanning support. To enjoy optimal reliability and performance from the D740 v20, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of Capture SDK.
Viktiga egenskaper
Socket Mobile DuraScan D740. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 30 m. Product colour: White, International Protection (IP) code: IP54. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 1500 mAh. Weight: 109 g, Width: 37.1 mm, Depth: 40.1 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,ISSN,Interleaved 2 of 5,JAN,MSI,Matrix 2 of 5,UPC-A,UPC-E |
|---|
| Sensor type | LED |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code |
|---|
| Optical sensor resolution (W x H) | 640 x 400 pixels |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Wireless range | 30 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
Performance
| Product colour | White |
|---|
| International Protection (IP) code | IP54 |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 1500 mAh |
|---|
| Number of reads per charge | 70000 |
|---|
| Battery life | 25 h |
|---|
Weight & dimensions
| Width | 37.1 mm |
|---|
| Depth | 40.1 mm |
|---|
| Height | 132.2 mm |
|---|
| Weight | 109 g |
|---|
Packaging data
| Charging base | Yes |
|---|
Operational conditions
| Storage temperature (T-T) | -5 - 70 °C |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
