Produktbeskrivning

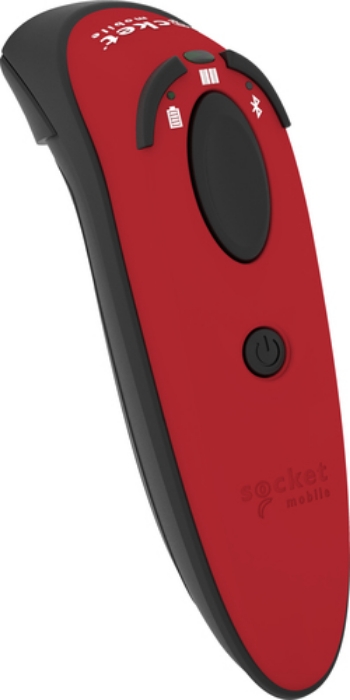

The DuraScan D760 v20 is the latest and improved version of the ultimate Bluetooth® barcode scanner. Built for mobility and redesigned for improved durability, the D760 v20 is IP54 compliant, ideal for travel and POS application customers where durability and indoor/outdoor flexibility is required. Travel merchants only need one device to scan purchased items and passports. In addition, Socket Mobile has added a field-replaceable battery based on customer feedback. The scanner is MFi certified and fully compatible with Android and Windows with different Capture SDK versions available.
The D760 v20 reads OCR fonts, passports, travel IDs, DotCode and 2D/1D barcodes on paper and screen. It features great ergonomics, fits perfectly in your hand and is small enough to fit in your pocket. The D760 v20 is fully backwards compatible with prior versions of Socket Mobile’s SDK and can be used immediately with any application using native scanning support. To enjoy optimal reliability and performance from the D760 v20, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of Capture SDK.
Viktiga egenskaper
Socket Mobile DuraScan D760. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 30 m. Product colour: Red, International Protection (IP) code: IP54. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 1500 mAh. Weight: 109 g, Width: 37.1 mm, Depth: 40.1 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Sensor type | LED |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),ISSN,Interleaved 2 of 5,JAN,MSI,Matrix 2 of 5,UPC-A,UPC-E |
|---|
| Optical sensor resolution (W x H) | 640 x 400 pixels |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Wireless range | 30 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
Performance
| Product colour | Red |
|---|
| International Protection (IP) code | IP54 |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 1500 mAh |
|---|
| Number of reads per charge | 70000 |
|---|
| Battery life | 25 h |
|---|
Weight & dimensions
| Width | 37.1 mm |
|---|
| Depth | 40.1 mm |
|---|
| Height | 132.2 mm |
|---|
| Weight | 109 g |
|---|
Packaging data
| Charging base | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage temperature (T-T) | -5 - 70 °C |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
