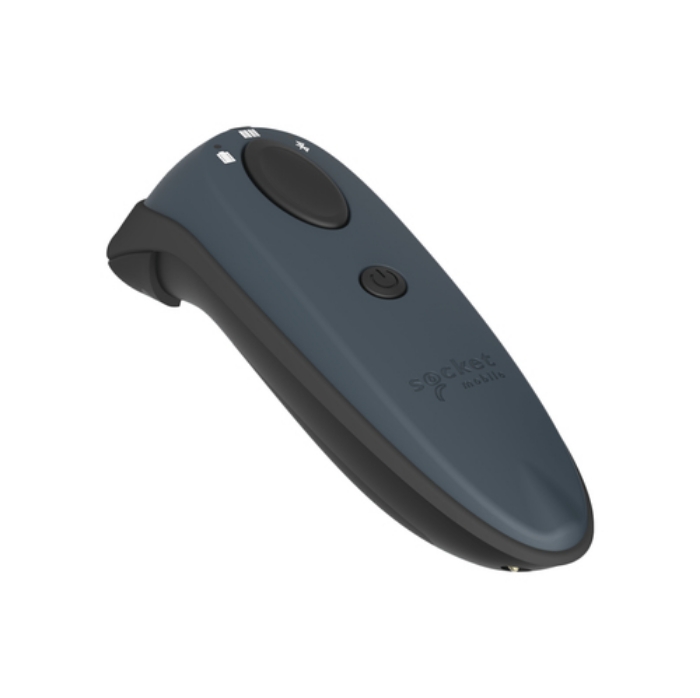

The DuraScan D760 is a 2D/1D barcode scanner and passport reader with Bluetooth® wireless technology and a highly durable exterior. Built strong for applications in warehouses, outdoor distribution and industrial manufacturing conditions. Scanning 2D/1D barcodes and MRZ/passports, travel merchants need only one device to scan the purchased items and the passport. The scanner’s IP54-rated outer casing withstands dust and water splashes, ruggedized for drop protection. Its antimicrobial material is easy to clean, helping protect from germs picked up from daily use. The D760 works perfectly in travel industries, including automotive, healthcare, logistics, and more. Its ergonomic design and light weight fit comfortably in the hand for all day use.
Certified by Apple® for iOS devices (iPad®, iPhone®, iTouch®) and compatible with Android, Windows® smartphones and tablets.
Viktiga egenskaper
Socket Mobile DuraScan D760. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 100 m. Product colour: Grey, International Protection (IP) code: IP54. Power source type: Battery, Battery technology: Lithium, Battery capacity: 1400 mAh. Weight: 112.5 g, Width: 37.1 mm, Depth: 40.1 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Sensor type | LED |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,MSI,Telepen,U.P.C. |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code |
|---|
| Optical sensor resolution (W x H) | 640 x 400 pixels |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
| Wavelength | 660 nm |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Wireless range | 100 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
Performance
| Product colour | Grey |
|---|
| International Protection (IP) code | IP54 |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium |
|---|
| Battery capacity | 1400 mAh |
|---|
| Number of reads per charge | 85000 |
|---|
| Battery life | 20 h |
|---|
| Charging time | 6 h |
|---|
Weight & dimensions
| Width | 37.1 mm |
|---|
| Depth | 40.1 mm |
|---|
| Height | 132.2 mm |
|---|
| Weight | 112.5 g |
|---|
Operational conditions
| Storage temperature (T-T) | -5 - 70 °C |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
