Produktbeskrivning

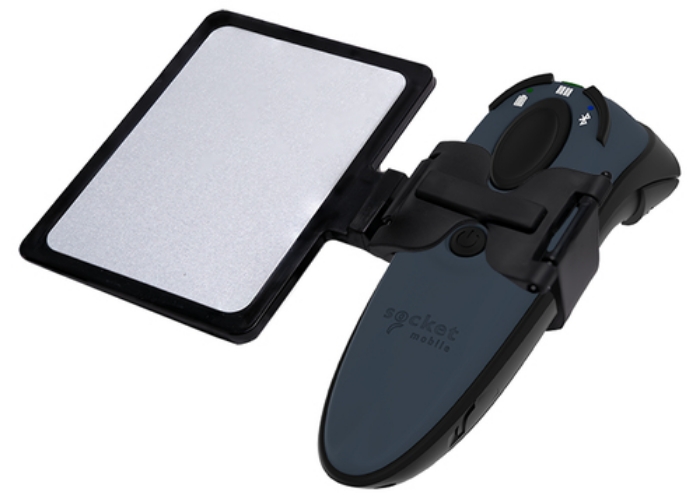

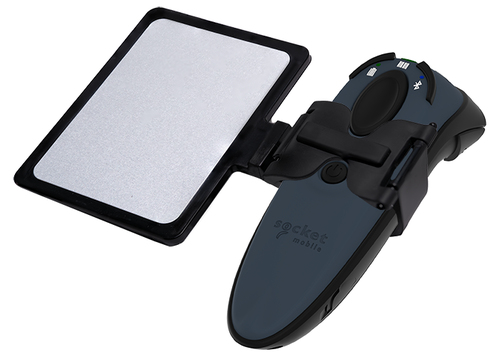

DuraScan D760

Travel merchants only need one device to scan purchased items and passports. Based on customer feedback, we've added a field-replaceable battery. The scanner is MFi certified and fully compatible with Android and Windows, with different CaptureSDK versions available. The D760 reads OCR fonts, passports, travel IDs, DotCode, and 2D/1D barcodes on paper and screen. It features great ergonomics, fits perfectly in your hand, and is small enough to fit in your pocket. The D760 is fully backward compatible with prior versions of Socket Mobile's SDK and can be used immediately with any application using native scanning support. To enjoy optimal reliability and performance from the D760, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of CaptureSDK.



Viktiga egenskaper

Socket Mobile D760. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Black, Grey, White, International Protection (IP) code: IP54, Protection features: Drop proof. Power source type: Battery, Battery voltage: 3.7 V, Battery life: 25 h. Width: 38.1 mm, Depth: 132 mm, Height: 43.1 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	AusPost,Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),ISSN,Interleaved 2 of 5,JAN,MSI,Matrix 2 of 5,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Sensor type	LED
Optical sensor resolution (W x H)	1280 x 960 pixels
Light levels (direct sunlight)	0 - 100000 lx

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	10 m
Bluetooth version	2.1+EDR

Product colour	Black,Grey,White
International Protection (IP) code	IP54
Protection features	Drop proof
LED indicators	Yes
Buzzer	Yes
Print contrast	25 %

Power source type	Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	1400 mAh
Battery voltage	3.7 V
Number of reads per charge	85000
Battery life	25 h
Charging time	6 h

Width	38.1 mm
Depth	132 mm
Height	43.1 mm

Operating relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Compliance certificates	RoHS
