Produktbeskrivning

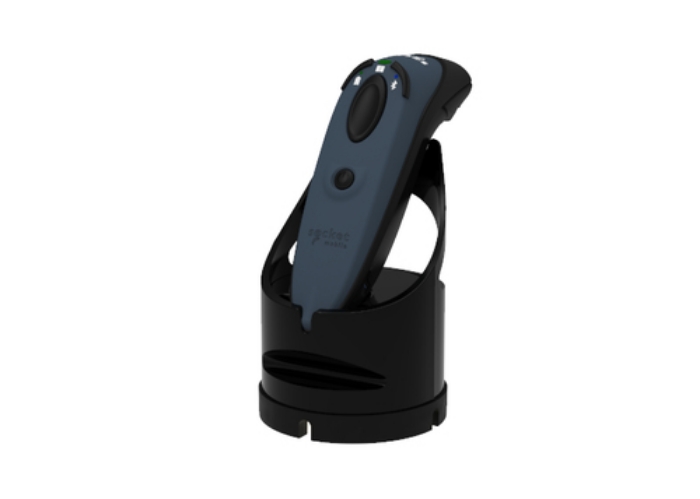

DuraScan D762
Durable Mid-Range 1D/2D Barcode Scanner

A versatile, high-performance data capture solution built for demanding environments. Supporting both 1D and 2D barcodes, the D762 offers exceptional scanning capabilities with a lightweight, ergonomic design for comfortable, all-day use.

With an extended working range, it accurately scans barcodes from as little as 2.1 inches and all the way up to 14 feet, accommodating sizes from 5 mil to 160 mil. This flexibility enables users to scan overhead items and inventory from a comfortable distance, boosting productivity in various applications.

Designed with durability in mind, the DuraScan D762 Mid-Range Barcode Scanner is IP54-rated for dust and water resistance and withstands multiple drops. Its field-replaceable, long-lasting battery ensures continuous operation, making it a reliable tool for warehouse, manufacturing, and commercial services environments.

User-friendly features include intuitive notifications for battery level, Bluetooth connectivity, and scanning status. Suitable for a wide range of applications such as logistics, healthcare, and retail, the D762 delivers fast, accurate data capture to enhance daily operations.



Viktiga egenskaper

Socket Mobile DuraScan D762. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Grey. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery type: Built-in battery. Width: 38.1 mm, Depth: 43.2 mm, Height: 132.1 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),ISBT 128,Industrial 2 of 5,JAN-13,JAN-8,UPC-A,UPC-E0
Sensor type	LED
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Dot Code A,MaxiCode,MicroPDF417,PDF417,QR Code
Optical sensor resolution (W x H)	1280 x 960 pixels
Horizontal field of view	44.5 °
Vertical field of view	33.5 °

Connectivity technology	Wired & Wireless
Standard interfaces	Bluetooth
Wireless range	10 m
Bluetooth version	2.1+EDR

Product colour	Grey
LED indicators	Yes

Power source type	Battery
Battery technology	Lithium Polymer (LiPo)
Battery type	Built-in battery
Battery capacity	1400 mAh
Battery voltage	3.7 V
Battery life	20 h

Width	38.1 mm
Depth	43.18 mm
Height	132.08 mm

Charging base	Yes

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
