Produktbeskrivning

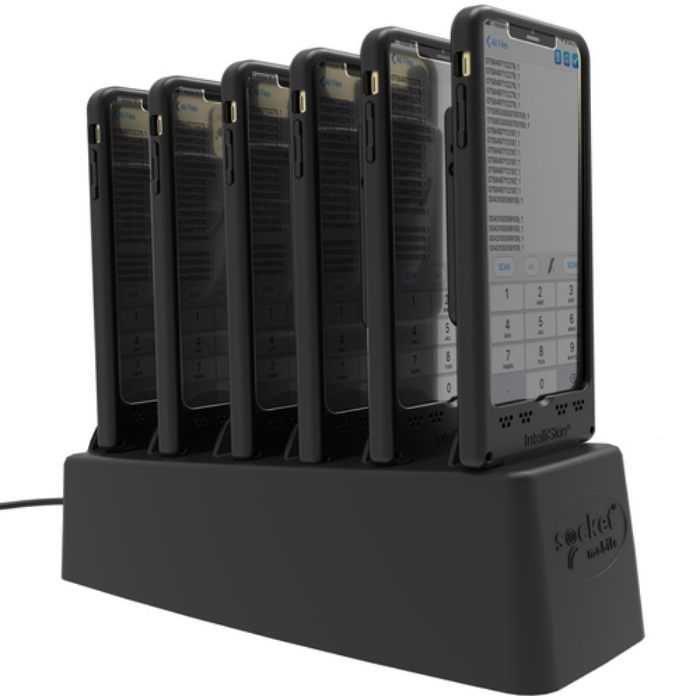

The DuraSled™ DS800 is a 1D barcode scanning sled with Bluetooth® wireless technology for Apple iPhones and iPods. The sled protects devices from tumbles, is easy-to-use and ideal for delivery services, stock counting, ticketing and other application-driven mobile solutions. Simply insert your iPhone/iPod, pair your scanner and you are ready to go.
The DuraSled’s core elements remain constant, enabling seamless transitions to the ever-changing iPhone models, using the same application and same DuraSled charging infrastructure. DuraSled supports the iPod, iPhone 6, 7, 8, iPhone X series and the entire iPhone 11 series. The core components don’t change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years.
Certified by Apple for iOS devices (iPad, iPhone, iPod Touch devices) and compatible with Android and Windows.
Viktiga egenskaper
Socket Mobile DuraSled DS800. Type: Barcode module bar barcode readers, Scanner type: 1D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, GS1.... Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Black, Housing material: Elastomer. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 82 g, Width: 60 mm, Depth: 17 mm
Teknisk specifikation
Scanning
| Type | Barcode module bar barcode readers |
|---|
| Scanner type | 1D |
|---|
| 2D (matrix & stacked) barcodes supported | Not supported |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,Matrix 2 of 5,UPC-A,UPC-E |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Wireless range | 10 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
Performance
| Product colour | Black |
|---|
| Housing material | Elastomer |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery type | Built-in battery |
|---|
| Battery capacity | 1500 mAh |
|---|
| Number of reads per charge | 10000 |
|---|
| Battery life | 10 h |
|---|
| Charging time | 4 h |
|---|
Weight & dimensions
| Width | 60 mm |
|---|
| Depth | 17.02 mm |
|---|
| Height | 137.6 mm |
|---|
| Weight | 82 g |
|---|
Packaging data
| Charging base | Yes |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -30 - 70 °C |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
