Produktbeskrivning

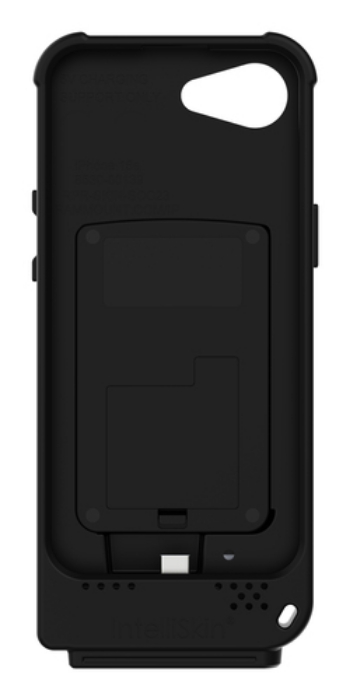

The DuraSled DS840 reads printed or on-screen barcodes. It is easy to use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its durable case protects phones from drop damage and provides a robust, versatile charging solution suitable for all workplace environments. Simply insert your iPhone, pair your scanner and you are ready to go.
This makes it easy for workers to mix and match DuraSled™ solutions for iPhones, all while using the same accessories and SDK. The core components don’t change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years.
The CaptureSDK enables easy integration into native and/or
Viktiga egenskaper
Socket Mobile DuraSled DS840. Type: Smartphone barcode reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, GS1.... Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Black, Housing material: Rubber, Protection features: Drop proof. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery capacity: 700 mAh. Weight: 113.5 g, Width: 71.6 mm, Depth: 7.8 mm
Teknisk specifikation
Scanning
| Type | Smartphone barcode reader |
|---|
| Scanner type | 1D/2D |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,Matrix 2 of 5,UPC-A,UPC-E |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Wireless range | 10 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
Performance
| Product colour | Black |
|---|
| Housing material | Rubber |
|---|
| Protection features | Drop proof |
|---|
| LED indicators | Yes |
|---|
| Country of origin | China |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium Polymer (LiPo) |
|---|
| Number of batteries supported | 1 |
|---|
| Battery capacity | 700 mAh |
|---|
| Battery voltage | 3.7 V |
|---|
| Number of reads per charge | 500 |
|---|
| Battery life | 11 h |
|---|
| Charging time | 8 h |
|---|
Weight & dimensions
| Width | 71.6 mm |
|---|
| Depth | 7.8 mm |
|---|
| Height | 147.6 mm |
|---|
| Weight | 113.5 g |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
Battery
| Battery weight | 12.5 g |
|---|
Technical details
| Warranty period | 1 year(s) |
|---|
| Compliance certificates | RoHS,UKCA,CE,Federal Communications Commission (FCC) |
|---|
| Sustainability compliance | Yes |
|---|
