Produktbeskrivning

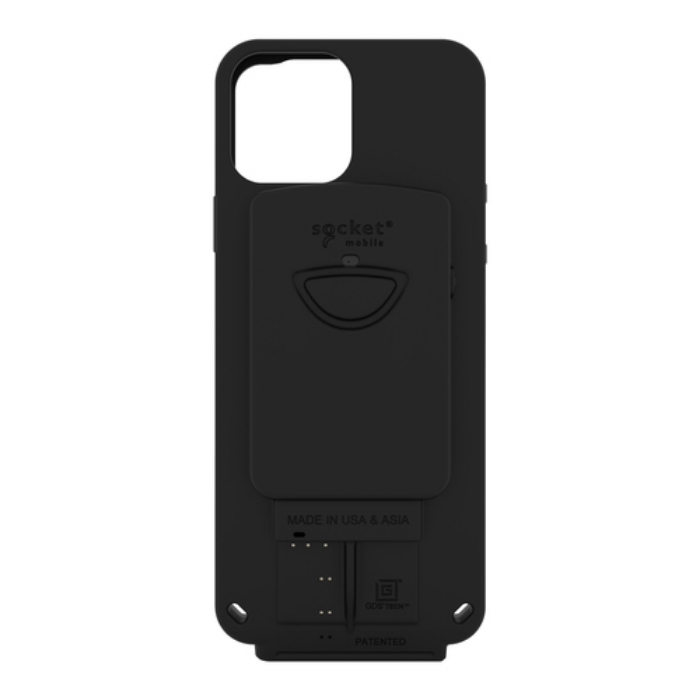

The DuraSled DS840 is a universal barcode sled scanner for 1D/2D barcodes, with Bluetooth wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its rugged case protects phones from drop damage and provides a robust, versatile charging solution suitable for all workplace environments. Simply insert your iPhone/iPod, pair your scanner and you are ready to go.
The Capture SDK enables easy integration into native, and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.
Viktiga egenskaper
Socket Mobile DuraSled DS840. Type: Barcode module bar barcode readers, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128.... Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Black, Housing material: Elastomer, International Protection (IP) code: IP40. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 118.5 g, Width: 79.8 mm, Depth: 178.8 mm
Teknisk specifikation
Scanning
| Type | Barcode module bar barcode readers |
|---|
| Scanner type | 1D/2D |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,MSI,U.P.C. |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Wireless range | 10 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
Performance
| Product colour | Black |
|---|
| Housing material | Elastomer |
|---|
| International Protection (IP) code | IP40 |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery type | Built-in battery |
|---|
| Number of reads per charge | 10000 |
|---|
| Battery life | 10 h |
|---|
| Charging time | 4 h |
|---|
Weight & dimensions
| Width | 79.76 mm |
|---|
| Depth | 178.82 mm |
|---|
| Height | 29.4 mm |
|---|
| Weight | 118.5 g |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -30 - 70 °C |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
| Sustainability compliance | Yes |
|---|
