Produktbeskrivning

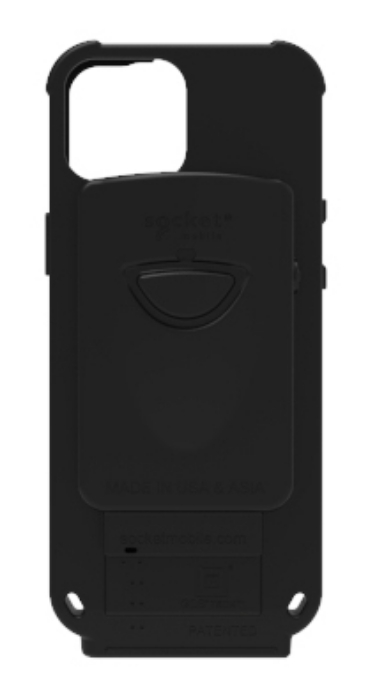

DuraSled DS840 for Apple

The DuraSled DS840 reads printed or on-screen barcodes. It is easy to use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its durable case protects phones from drop damage and provides a robust, versatile charging solution suitable for all workplace environments. Simply insert your iPhone, pair your scanner and you are ready to go. This makes it easy for workers to mix and match DuraSled solutions for iPhones, all while using the same accessories and SDK. The core components don’t change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years. The CaptureSDK enables easy integration into native and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.



Viktiga egenskaper

Socket Mobile DS840. Type: Smartphone barcode reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, GS1.... Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Black, Housing material: Rubber, Protection features: Drop proof. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery capacity: 700 mAh. Weight: 113.5 g, Width: 71.6 mm, Depth: 7.8 mm



Teknisk specifikation

Type	Smartphone barcode reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,Matrix 2 of 5,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Light levels (direct sunlight)	0 - 100000 lx

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	10 m
Bluetooth version	2.1+EDR

Product colour	Black
Housing material	Rubber
Protection features	Drop proof
LED indicators	Yes

Power source type	Battery
Battery technology	Lithium Polymer (LiPo)
Number of batteries supported	1
Battery capacity	700 mAh
Battery voltage	3.7 V
Number of reads per charge	10000
Battery life	11 h
Charging time	8 h

Width	71.6 mm
Depth	7.8 mm
Height	147.6 mm
Weight	113.5 g

Charging base	Yes

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %

Compliance certificates	RoHS
Sustainability compliance	Yes
