Produktbeskrivning

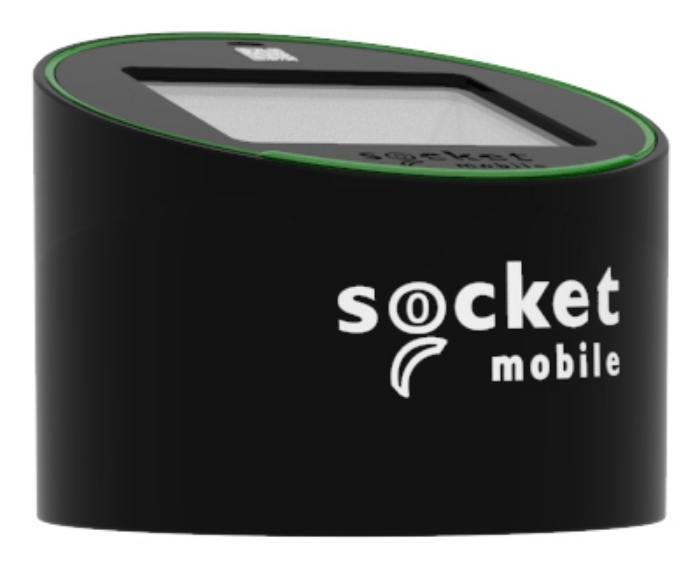

SocketScan S320

With a primary focus on QR code payments, the S320 provides a reliable and efficient solution for consumers to complete transactions by simply presenting their mobile wallet. With its portable countertop design, the S320 easily fits into any retail environment, offering seamless integration for businesses looking to adopt QR code payment systems. Whether connected to a power source or operating on battery, the S320 effectively reads QR payment codes from paper, labels, and mobile wallets, ensuring quick and effortless customer transactions. Equipped with user-friendly LED indicators, the S320 provides intuitive visual and audio feedback on battery levels, Bluetooth connectivity, and scanning status, allowing users to maintain optimal operation without interruption. In addition to QR code payments, the S320 supports various other applications, such as age verification, access control or ticket acceptance for secure environments, and loyalty and couponing programs. Using Bluetooth LE connectivity, it rapidly captures both 1D and 2D omnidirectional barcodes such as QR Codes, PDF417, and Data Matrix. Its advanced technology is matched by a convenient, user-friendly design—effortlessly handling a broad spectrum of scanning tasks even in fully mobile, wireless settings.



Viktiga egenskaper

Socket Mobile S320. Type: Fixed bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39 (ASCII), EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128),.... Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Black. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery capacity: 1800 mAh. Width: 92.7 mm, Depth: 92.7 mm, Height: 74.2 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39 (ASCII),EAN-13,EAN-8,GS1 DataBar,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,JAN-13,JAN-8,PDF417,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Data Matrix,PDF417,QR Code

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	10 m
Bluetooth Low Energy (BLE)	Yes
Near Field Communication (NFC)	Yes

Product colour	Black
LED indicators	Yes

Power source type	Battery
Battery technology	Lithium Polymer (LiPo)
Number of batteries supported	1
Battery capacity	1800 mAh
Battery voltage	3.7 V
Number of reads per charge	10000
Battery life	25 h
Charging time	4 h

Width	92.7 mm
Depth	92.7 mm
Height	74.2 mm

Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	0 - 45 °C

Compliance certificates	RoHS
