Produktbeskrivning

Built for limited counter space and all-day reliability, we created the S550 to work with applications for loyalty, closed-loop payments, pop-up selling, events, ticket or ID verification, and other customer-related services. Together with an application, the S550 can automatically request the appropriate mobile pass from an iOS or Android host device for a franchise, store, venue, or event you are attending to ensure a fast and convenient end-user experience. The result is simple user interaction and a high level of security by capturing a cryptographically generated payload from the mobile pass. The mobile pass then transmits the payload over secure Bluetooth to an iPad or other host device running a connected application.

The S550 is compact, portable, and can run on a battery or be plugged into power. Convenient for use anytime, anywhere with applications running on Android, Apple iOS devices (iPad®, iPhone®, iPod touch®) and Windows. The S550 supports all NFC Forum tag types and devices compliant with the ISO 18092 standard, in addition to ISO 14443 Type A and B smart cards, ISO 15693 tags, MIFARE®, FeliCa®, NXP, and STMicro tags. It is NFC Forum, Apple Pay® Value Added Service (VAS), Google Wallet, FeliCa®, and Bluetooth SIG certified. It complies with both Apple and Google NFC protocols on iPhone and Android devices.

Digital ID / mDL (Mobile Driver's License) Reader: The S550 is an excellent choice in the new age of digital IDs and mDLs and simplifies the mDL reading process. Many states and countries have already begun to roll out systems for mDL usage, and Socket Mobile is helping industries such as retail, commercial services, and government move into this new digital ID ecosystem. Ready to read mobile wallet mDLs out of the box, the S550 can read credentials following ISO18013-5, the standard adopted in many jurisdictions.



Viktiga egenskaper

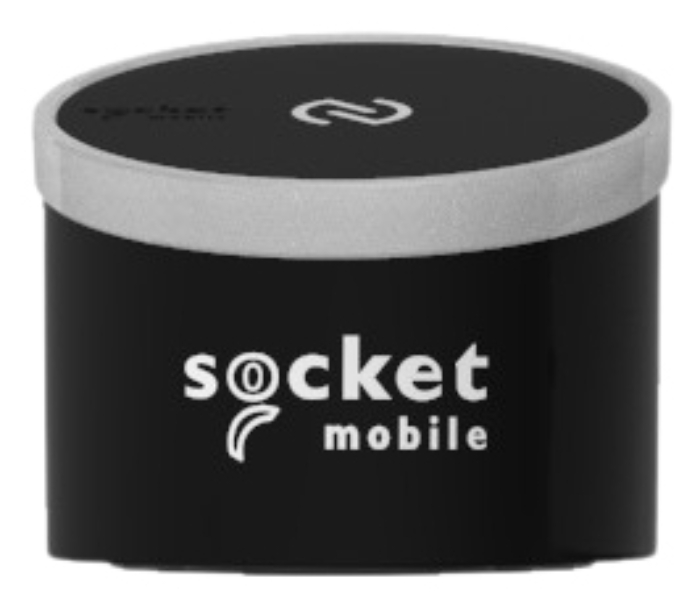

Socket Mobile SocketScan S550. Battery type: Built-in battery, Battery technology: Lithium, Battery capacity: 1000 mAh. Country of origin: China



Teknisk specifikation

Interface	Bluetooth
Bluetooth Low Energy (BLE)	Yes
Operating frequency	13.56 MHz
Frequency	13560 kHz
Product colour	Black
Integrated antenna	Yes
Built-in display	No
Working distance	50 mm
Compliance certificates	RoHS
LED indicators	Yes
Safety warning	FCC ID: Certified to IEC 60950-1 UL 60950-1 CAN/CSA C22.2
Certification	FCC ID: LUBS550

Battery type	Built-in battery
Battery technology	Lithium
Battery capacity	1000 mAh

Rechargeable battery	Yes

Country of origin	China

Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-40 - 70 °C
