Produktbeskrivning

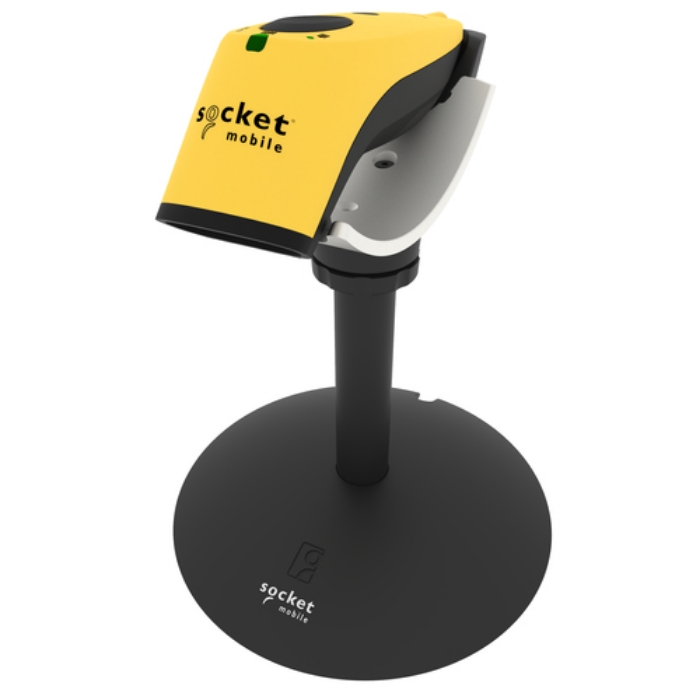

The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It’s lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
Viktiga egenskaper
Socket Mobile SocketScan S720. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar,.... Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Yellow, LED indicators: Power, Status, Certification: EC 60950-1, UL 60950-1, CAN/CSA C22.2 RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024,.... Power source type: Battery, Battery technology: Nickel-Metal Hydride (NiMH), Battery type: AA. Weight: 117 g, Width: 37.1 mm, Depth: 40.1 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,Han Xin,Micro QR Code,MicroPDF417,PDF417,QR Code |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,Industrial 2 of 5,Interleaved 2 of 5,MSI,Plessey,UPC-A,UPC-E |
|---|
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
|---|
| Working distance | 380 mm |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| USB version | 2.0 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Wireless range | 10 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
| Cable length | 1.2 m |
|---|
Performance
| Product colour | Yellow |
|---|
| LED indicators | Power,Status |
|---|
| Buzzer | Yes |
|---|
| Built-in display | No |
|---|
| Vibration function | Yes |
|---|
| Certification | EC 60950-1, UL 60950-1, CAN/CSA C22.2
RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024, TELEC |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Nickel-Metal Hydride (NiMH) |
|---|
| Battery type | AA |
|---|
| Number of batteries supported | 2 |
|---|
| Battery capacity | 2000 mAh |
|---|
| Battery voltage | 2.4 V |
|---|
| Number of reads per charge | 70000 |
|---|
| Battery life | 16 h |
|---|
| Charging time | 6 h |
|---|
Weight & dimensions
| Width | 37.1 mm |
|---|
| Depth | 40.1 mm |
|---|
| Height | 132.2 mm |
|---|
| Weight | 117 g |
|---|
Packaging data
| Charging base | Yes |
|---|
| Cables included | USB |
|---|
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Battery
| Battery weight | 54.5 g |
|---|
Technical details
| Compliance certificates | C-TICK,CE,Federal Communications Commission (FCC),RoHS |
|---|
| Sustainability compliance | Yes |
|---|
Other features
| Light source | LED |
|---|
| Compatible operating systems | Windows 10, Android, iOS, Mac OS |
|---|
