Produktbeskrivning

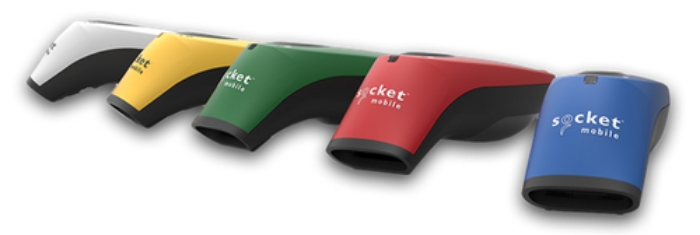

The SocketScan S740 2D/1D imager barcode scanner with Bluetooth wireless technology scans either 1D or 2D barcodes on paper or screen. It has a lightweight, ergonomic structure, and a long-lasting battery to withstand entire work days. The five color options fit most styles and environment needs. The lights for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. Compatible with all applications in previous Socket Mobile barcode scanners, without software changes.
This scanner is dressed to impress both consumers and end users in retail and office settings. Ideal for retail POS, field service, inventory management, asset tracking and more. Use our Companion App for easy set up and configuration.
Application Integration – Socket Mobile’s Capture SDK enables integration in your applications to improve business productivity with fast, efficient and reliable data transfer over Bluetooth wireless technology.
Viktiga egenskaper
Socket Mobile SocketScan S740. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Blue. Power source type: Battery, Battery technology: Nickel-Metal Hydride (NiMH), Battery capacity: 2000 mAh. Weight: 117 g, Width: 37.1 mm, Depth: 40.1 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,JAN,MSI,U.P.C. |
|---|
| Sensor type | LED |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
| Wavelength | 660 nm |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Wireless range | 10 m |
|---|
| Bluetooth version | 2.1+EDR |
|---|
Performance
| Product colour | Blue |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Nickel-Metal Hydride (NiMH) |
|---|
| Number of batteries supported | 2 |
|---|
| Battery capacity | 2000 mAh |
|---|
| Number of reads per charge | 70000 |
|---|
| Charging time | 6 h |
|---|
Weight & dimensions
| Width | 37.1 mm |
|---|
| Depth | 40.1 mm |
|---|
| Height | 132.2 mm |
|---|
| Weight | 117 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
