Produktbeskrivning

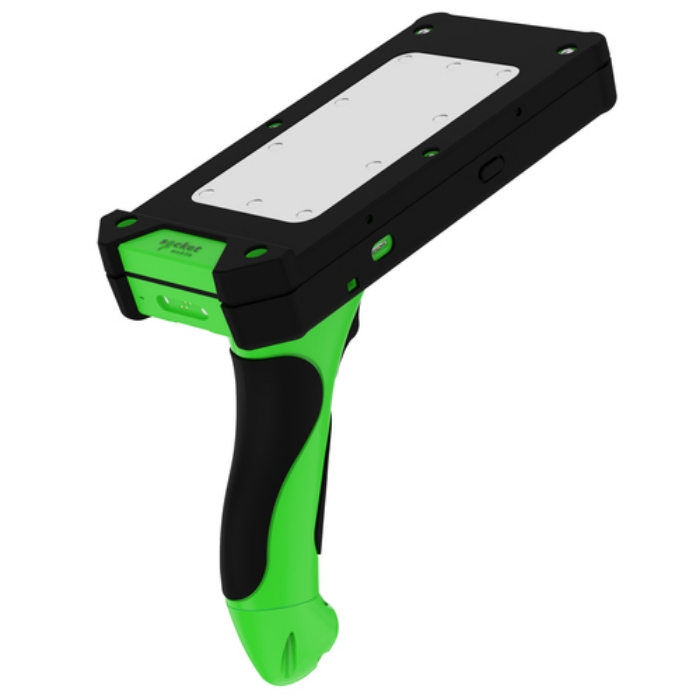

Unlock long-range scanning power in a compact, BYOD-friendly device built for single-handed operation. The XtremeScan Mag 663 is designed for mobile professionals who need industrial-grade performance without added bulk. Featuring a secure magnetic attachment system and streamlined design, this rugged data reader integrates with most mobile devices and delivers accurate 1D/2D barcode capture from up to 46 feet away.

The XtremeScan Mag 663 combines a powerful long-range barcode scanner with a secure magnetic mounting system, creating a rugged, high-performance solution for Bring Your Own Device (BYOD) operations. Designed for warehousing, logistics, manufacturing, and field service environments, the 663 allows employees to quickly attach and detach their mobile devices throughout the day—offering flexibility, convenience, and professional-grade scanning performance.

Equipped with a long-range 1D/2D scanning engine, the 663 reads barcodes from as far as 46 feet away, minimizing the need for repositioning or reaching hard-to-access areas. Whether scanning labels on high warehouse racks or asset tags at close range, the 663 provides fast, omnidirectional scanning with a high-precision aimer designed for accurate targeting in all lighting conditions.

Built with industrial-grade durability, the XtremeScan housing features IP67 sealing to protect against dust, water, and rough handling in demanding environments. Its compact form factor and ergonomic design ensure comfort during long shifts, while Bluetooth® LE connectivity enables smooth pairing with a wide range of mobile devices. The magnetic attachment system delivers a secure, convenient connection that keeps devices firmly in place during use, yet easy to remove when needed for other tasks.



Viktiga egenskaper

Socket Mobile XtremeScan Mag 663. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 10 m. Product colour: Black, Green, International Protection (IP) code: IP67, Protection features: Drop resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Charging port type: USB Type-C. Width: 91 mm, Depth: 91 mm, Height: 193.1 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Composite Codes,Data Matrix,DotCode,Grid Matrix Code,Han Xin,MaxiCode,MicroPDF417,Micro QR Code,PDF417,QR Code
Linear (1D) barcodes supported	Codabar,Code 128,Code 93,Code 39,EAN-8,EAN-13,JAN-13,JAN-8,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1 Databar Limited,Interleaved 2 of 5,ISBT 128,Trioptic,UPC-A,UPC-E
Sensor type	LED
Light levels (direct sunlight)	0 - 100000 lx
Tilt reading angle	33.5 - 44.5 °

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	10 m
Bluetooth version	2.1+EDR

Product colour	Black,Green
International Protection (IP) code	IP67
Protection features	Drop resistant
LED indicators	Yes
Country of origin	China

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Charging port type	USB Type-C
Battery capacity	1200 mAh
Battery voltage	3.7 V
Charging time	7 h

Width	91 mm
Depth	91 mm
Height	193.1 mm

Storage relative humidity (H-H)	0 - 60 %
Drop resistance	3.1 m
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %

Number of battery cells	1
Rechargeable battery	Yes
Battery weight	22 g
Battery capacity	4.44 Wh

Compliance certificates	CE,Federal Communications Commission (FCC),RoHS,UKCA
Warranty period	1 year(s)

Mobile operating systems supported	Android,iOS
Windows operating systems supported	Yes
